Item # 122320
6 Copper Wires, 20 cm length with Pre-Crimped End Terminals
|
Description: Pre-Crimped End Terminals 1 mm Wire with 20 cm length (6 Wires)
Wire Specifications:
| ● | Conductor: Flexible Copper conductor (class 5 )
the core is formed by a large number of thin wires
No. of wires: ≈ 32 max. wire-Ø: 0.21 mm | | ● | Copper Purity: 99.9% | | ● | Nominal Cross Section: 1 mm2 | | ● | Insulation: PVC (Polyvinyl Chloride) | | ● | Insulation Thickness: 0.6 mm | | ● | Voltage Rating (Uo/U): 300/500V | | ● | Current Rating (enclosed in conduit): 10 A | | ● | Temperature Rating:
Fixed: -30°C to +70°C Flexed: -5°C to +70°C | | ● | Approx. Overall Diameter: 2.46 mm | | ● | Manufacturer: EL SEWEDY CABLES |
End Terminals Specifications:
| ● | End Terminal Code: E1008 | | ● | Material: Copper | | ● | Plating: Tin plated | | ● | Insulation: PVC (Polyvinyl Chloride) | | ● | Color: Standard According to wire size - Red |

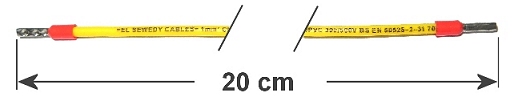

Total Length: 20cm
|
|
