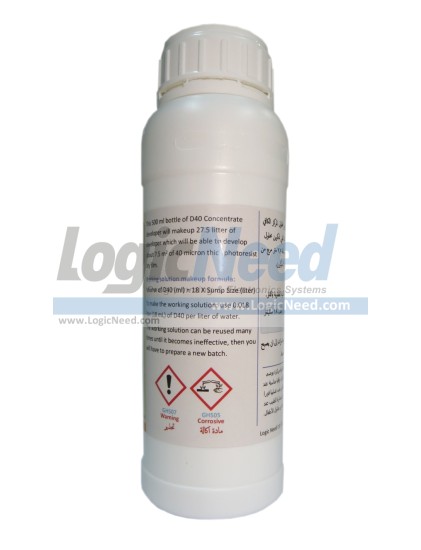

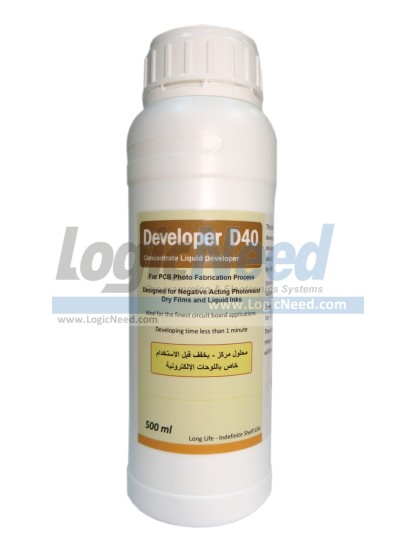

Item # 15051
Volume: 500 millilitre
This 500 ml bottle of D40 Concentrate developer will makeup 27.5 litter of developer which will be able to develop about 7.5 m2 of 40 micron thick photoresist dry film.
|
Description:
• For PCB Photo Fabrication Process
• Designed for negative acting photoresist dry films and liquid inks
• Ideal for the finest circuit board applications.
• Developing time less than 1 minute
• Long Life
• Indefinite Shelf Life
• Bottle volume: 500 ml
This 500 ml bottle of D40 Concentrate developer will makeup 27.5 litter of developer which will be able to develop about 7.5 m2 of 40 micron thick photoresist dry film.
Working solution makeup formula:
Volume of D40 (ml) = 18 X Sump Size (liter)
To make the working solution: use 0.018 liter (18 mL) of D40 per liter of water.
The working solution can be reused many times until it becomes ineffective, then you will have to prepare a new batch.
For electronics labs and industrial use only.
|
|
|
|
Price:
|
|
210.00 EGP per Unit
|
|
