RGB SMD 5050 LED
Item # 10235
RGB SMD 5050 LED
Description:
● Forward Voltage :
    Red: 1.9 ~ 2.1V
    Green: 3.0 ~ 3.3V
    Blue: 3.0 ~ 3.3V

● Forward Current: 60MA
● Color: True color, Red / Blue / Green

● Brightness:
    Red: 300 ~ 500mcd.
    Green: 1000 ~ 1200mcd.
    Blue: 300 ~ 500mcd.

● Wavelength:
    Red:  617-627NM
    Green: 516-519NM
    Blue: 468-471NM

● Average life time (hours): 50,000
● Brightness attenuation: 3% after 5000 hours
● Certification: CCC, CE, RoHS, UL
● Model Number: PLCC6, 3 chips
● LED Dimensions: 5.0×5.0×1.6mm.

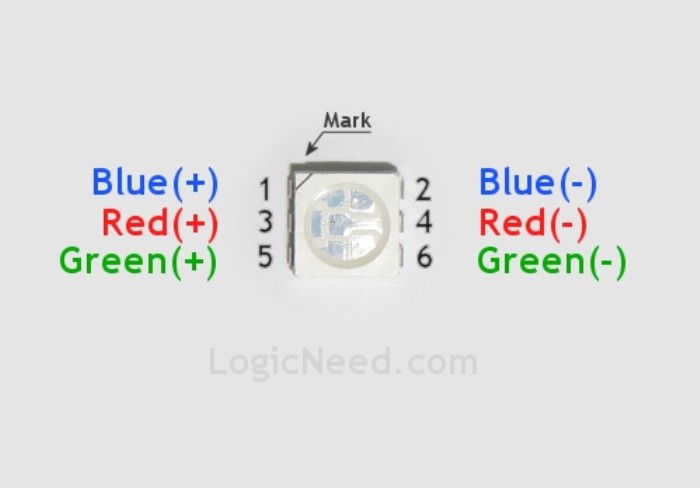

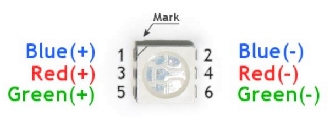

How to Connect:


Precautions for Use:
Over-current-proof: Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen).

Documents & Files:
SMD LED 5050.pdf

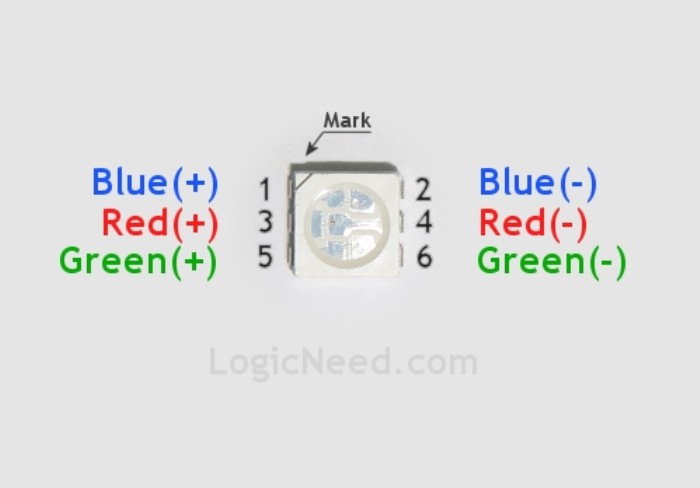

Dimensional Drawing & Polarity
Similar products:


RoHS Compliant

Quantity:
Price:
$0.11  USD
per Unit
Wholesale Pricing:
Qty.Price per Unit
1 - 49$0.11  USD
50 - ∞$0.10  USD
