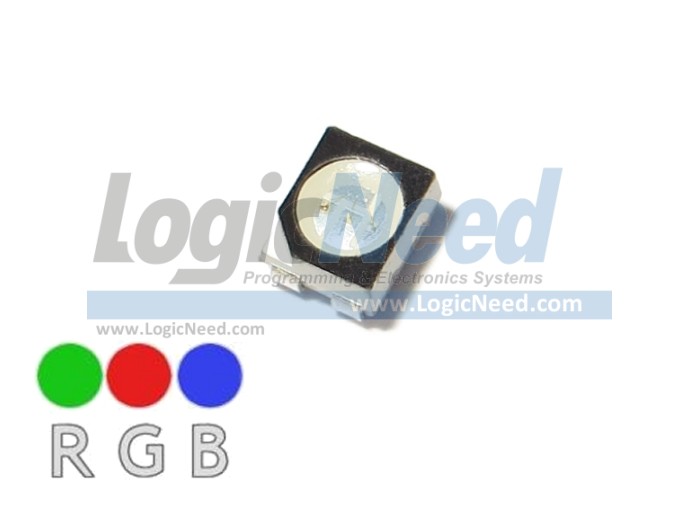

RGB Common-Anode SMD 3528 LED
Item # 10237
RGB SMD 3528 LED
Common Anode LED
Package type: SMD 3528
Description:
● Lens Color: Water Clear
● Emitting ColorTrue color, Red / Blue / Green
● Forward Current: 20mA (each color)
● Polarity: Common Anode
● Viewing Angle: 120 Degree
● Model Number: PLCC2, 3 chips
● Surface Color:  Black

 Case Size Code:
    1411 (Imperial )
    3528 (Metric)

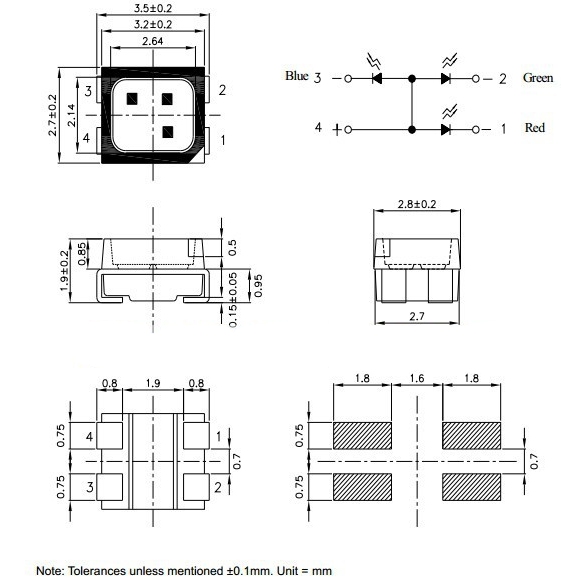

 LED Dimensions: 3.5×2.8×1.9mm.
● Forward Voltage :
    Red: 2.0 ~ 2.6V
    Green: 3.0 ~ 3.4V
    Blue: 3.2 ~ 3.4V

● Brightness:
    Red: 120 ~ 150mcd.
    Green: 200 ~ 300mcd.
    Blue: 90 ~ 95mcd.

● Wavelength:
    Red:  620-625NM
    Green: 520-525NM
    Blue: 460-470NM
How to Connect:


Precautions for Use:
Over-current-proof: Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen).


Quantity:
Price:
$0.08  USD
per Unit
