7447 BCD to 7-Segment Decoder/Driver
Item # 10302

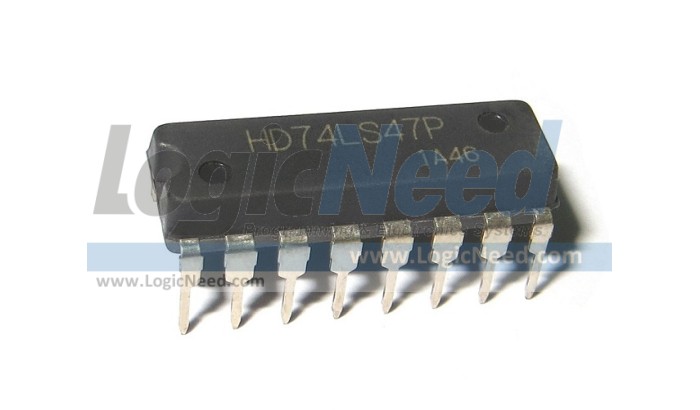

74LS47
BCD to 7-Segment Decoder/Driver with Open-Collector Outputs
Package type: DIP 16-pin

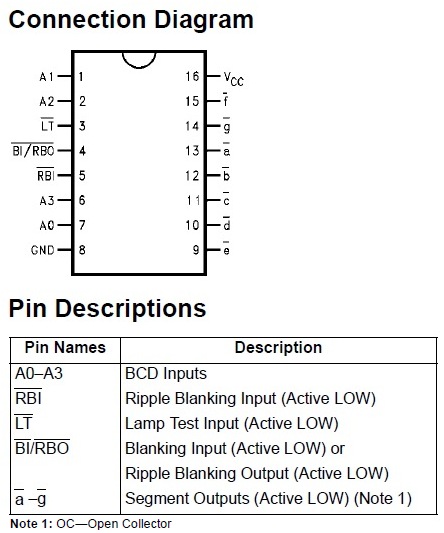

Description: The 74LS47 accepts four lines of BCD (8421) input data, generates their complements internally and decodes the data with seven AND/OR gates having open-collector outputs to drive indicator segments directly. Each segment output is guaranteed to sink 24 mA in the ON (LOW) state and withstand 15V in the OFF (HIGH) state with a maximum leakage current of 250 mA. Auxiliary inputs provided blanking, lamp test and cascadable zero-suppression functions.

7447 BCD to 7-Segment Decoder/Driver

Documents & Files:
74LS47.pdf
Data Sheet


Currently
Out of stock
Price:
$0.24  USD
per Unit
