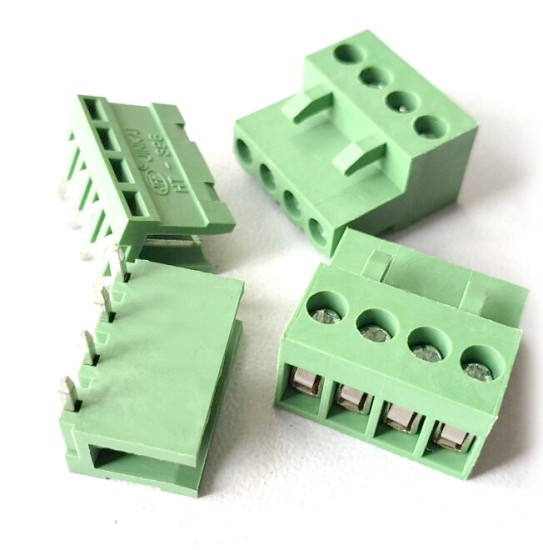

HT-396 Plug-in Terminal Block 4 Pin
Item # 1311

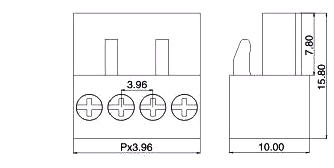

Green HT 3.96 Pluggable Terminal Block

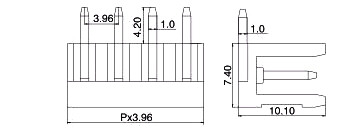

4 Pos Header, 90 Deg
Description:

Material
▪ Pitch: 3.96mm
▪ Poles: 4P
▪ Pin header: Brass, Tin plated
▪ Screw: M2.5, Steel, Zinc plated
▪ Housing: PA66. UL94V-0
▪ Mounting direction: Right Angle to PCB

Electrical
▪ Rated voltage: 300V
▪ Rated current: 15A
▪ Withstanding voltage: 1.5KV
▪ Wire size range: 0.08 - 2.5 mm² (A.W.G 28 - 14)

Mechanical
▪ Temperature range: -40 °C to +105 °C
▪ MAX.soldering: +250°C for 5sec
▪ Torque: 0.4Nm (3.5 lb.in)
▪ Wire strip length: 7 ~ 8mm

Model number: JFF396







Quantity:
Price:
25.00  EGP
per Unit
