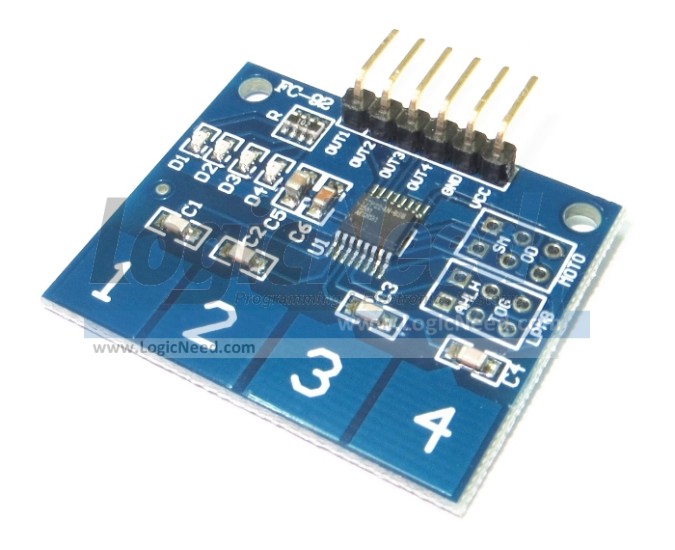

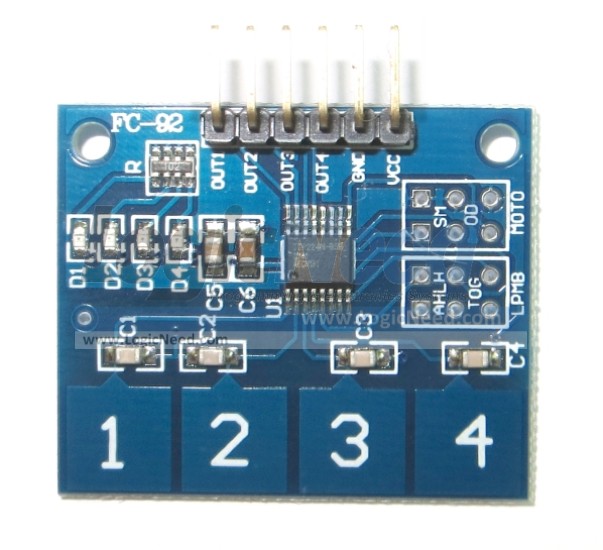

TTP224 Capacitive Touch Sensor Module (4 channels)
xxx
Item # 14541
The TTP224 capacitive touch sensor module is perfect for adding 4 capacitive touch inputs to your new project.
4-Channel Digital Touch Sensor Capacitive Switch Module Button For Arduino TTP224
Description: This capacitive touch sensor module uses the TTP224 integrated circuit, making it easy to add capacitive touch input to your project. It features 4 sensitive touch pads that make an ideal replacement for the old fashioned switches.

Specifications
● On-board 4-key TTP224 capacitive touch sensor IC
● 4 status indicator LEDs
● Working Voltage Range: 2.4 V to 5.5 V
● Configurable output mode
● PCB Size: 35 x 29 mm
Documents & Files:
TTP224-Datasheet.pdf
TTP224-Datasheet
TTP224-Schematic-Diagram.pdf
TTP224-Schematic
TTP224_4_CHANNEL_CAPACITIVE_TOUCH.pdf
Specifications & How to use it


Currently
Out of stock
Price:
$3.33  USD
per Unit
