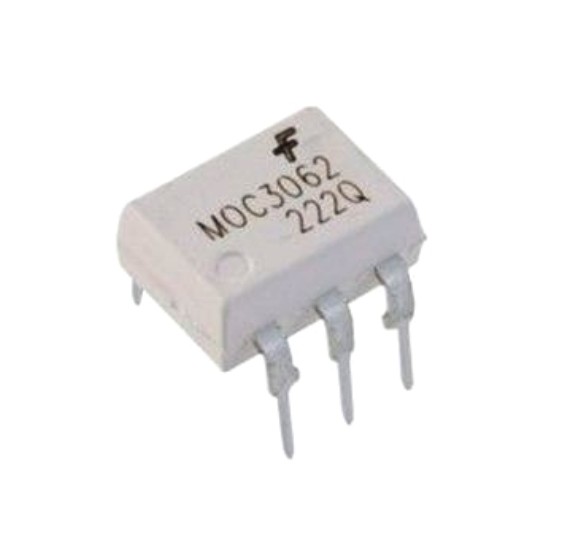

MOC3062 Zero Crossing Triac Driver Optocoupler
Item # 1616
MOC3062M
600 Volt Peak
Package type: DIP 6-pin
Description:
The MOC306XM and MOC316XM devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.
They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.

Features:
• Simplifies Logic Control of 115/240 VAC Power
• Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise
• 600 V Peak Blocking Voltage
• Superior Static dv/dt
   – 600 V/μs (MOC306xM)
   – 1000 V/μs (MOC316xM)
• Safety and Regulatory Approvals
   – UL1577, 4,170 VACRMS for 1 Minute
   – DIN EN/IEC60747-5-5

Applications:
• Solenoid/Valve Controls
• Static Power Switches
• Temperature Controls
• AC Motor Starters
• Lighting Controls
• AC Motor Drives
• E.M. Contactors
• Solid State Relays

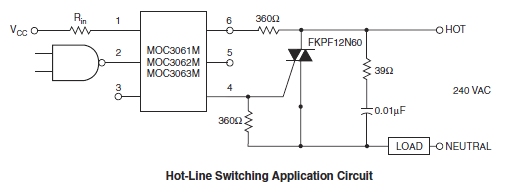

Basic Applications:
Documents & Files:
MOC3062M.pdf
Datasheet
Manufacturer website: [Click here]


Quantity:
Price:
8.00  EGP
per Unit
