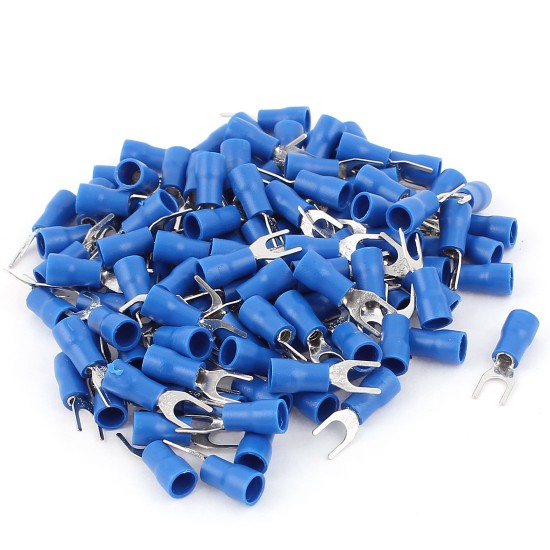

Blue Vinyl-Insulated Fork Terminal 27A for AWG 16-14
xxx
Item # 17703
Spade Insulated Terminal

Model  SVS2-4

Quantity: 1 piece
Description: Pre-insulated Fork Terminal
The pre-insulated terminal is easy to connect with electrical wire to strengthen its reliability and safety.
Used widely in the machiney, electric power, railway, shipbuilding, aviation, home appliance, computer or other automatic equipments.

Features:
• Maximum electrical conductivity after crimping
• Funnel edged barrel for fast, easy insertion of wire
• Maximum holding power
• Tin plating prevents corrosion
• Wire range clearly stamped on neck of terminal
• Terminals are color coded by wire range for easy wire identification.

22-18 GA 16-14 GA 12-10 GA 8 GA 6 GA 4 GA

Specifications:
● Model: SVS2-4
● Terminal material: Copper
● Terminal surface treatment: Tin plated
● Insulation material: PVC = Polyvinylchloride (Vinyl)
● Insulation Color: Blue
● Wire size range: 1.5 - 2.5mm² (A.W.G 16 - 14)
● Gauge: 16-14
● Max. Current: 27A



● Stud Diameter: #8 (USA Screw #8 )
● Stud hole Diameter (d2) : 4.3mm
● Fork Outer Width (W): 6.4mm / 0.252"
● Tube Inner Diameter: 4.8mm / 0.189"
● Total Length (L): 21.5mm / 0.85''

Marking: Wire size & bolt size (16-14 & 2-4)
Marking Code: 16-14 & 2-4


Quantity:
Price:
$0.05  USD
per Unit
