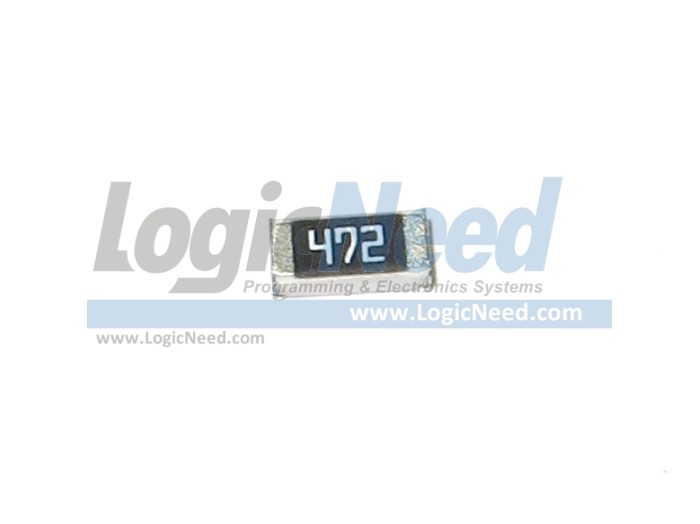

4.7K ohm SMD Resistor 1/4W  5%  (strip of 10)
Item # 2016

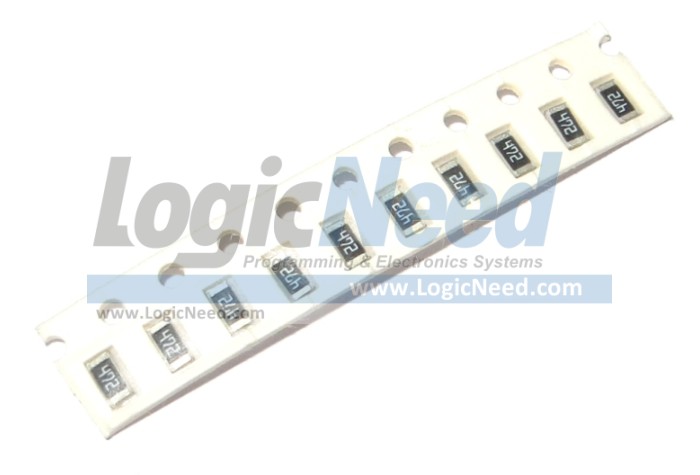

Strip of 10 pieces SMD Resistor.
4.7K ohm 1/4W SMD 1206 Resistor  5%

Items per lot: 10
Package type: SMD 1206
Description:
Thick Film Chip Resistors

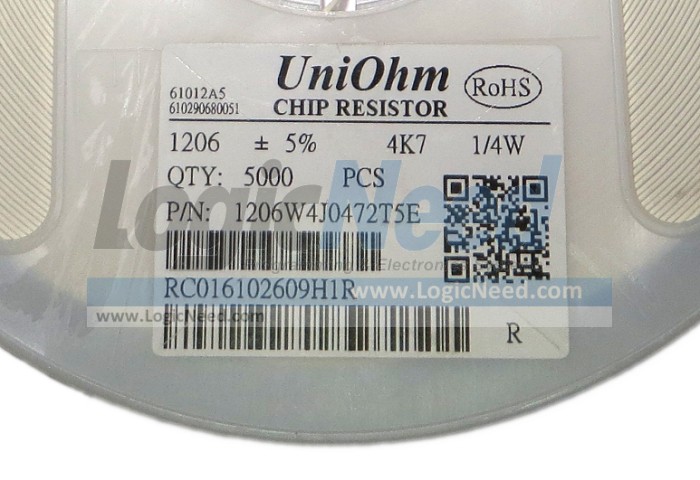

Part: 1206W4J042T5E

Specifications:
● Resistor Value: 4.7K ohm
● Resistor Type: Fixed Value SMD Resistor
● Case Size Code:
1206 (Imperial )
3216 (Metric)
● Power rating : 1/4 Watt
● Max Operating Temperature: 155 °C
● Min Operating Temperature: -55 °C
● Resistance: 4.7 kΩ
● Temperature Coefficient: ±100 ppm/°C
● Max. Working Voltage:  200V
● Max. Overload Voltage: 400V
● Dielectric withstanding Voltage: 500V
● Tolerance: 5 %
● Termination: Solder
● Mount: Surface Mount


Features:
• Small size & light weight
• Low tolerance (5 %)
• Reduction of assembly costs and matching with placement machine.
• Suitable for both wave & re-flow soldering.
• Applications: Navigator (GPS), Mobile Phone,Telecom, PDA, Setbox, Meter.

Marking Code: 472
Documents & Files:
Manufacturer website: [Click here]

RoHS Compliant

Quantity:
Price:
$0.19  USD
per Lot
(10 items per lot)
Wholesale Pricing:
Qty.Price per Lot
(10 items per lot)
1 - 9$0.19  USD
10 - ∞$0.18  USD
