STM8S103K3  Microcontroller
Item # 50412
SMD

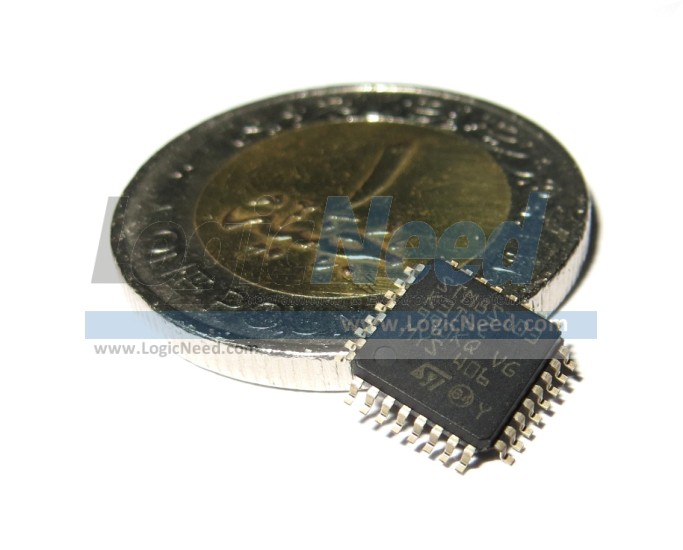

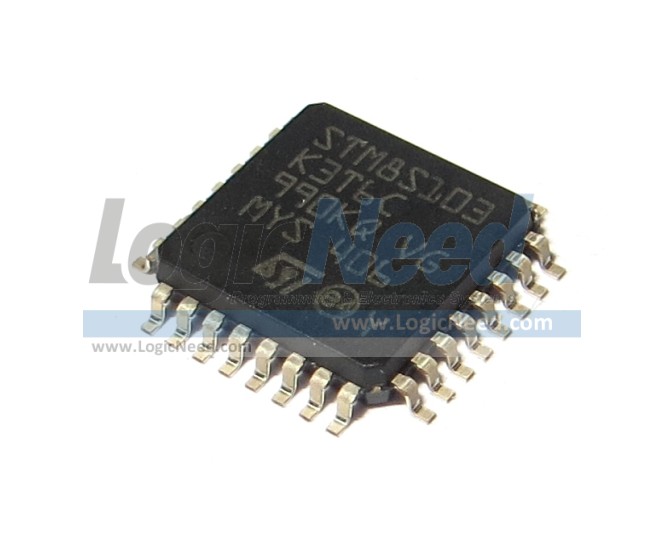

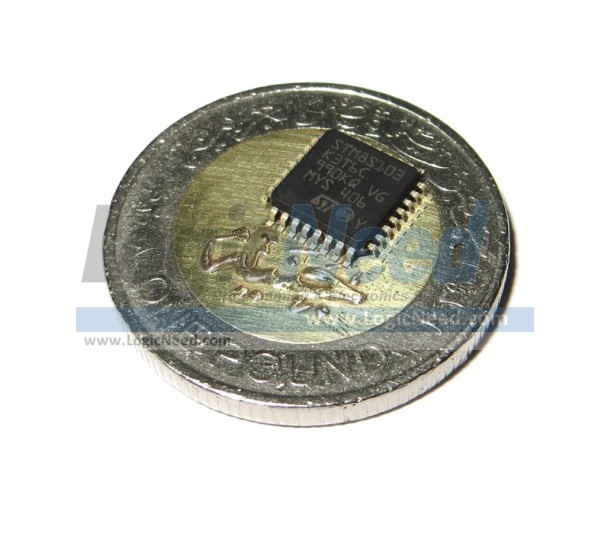

STM8S103K3T6C  Microcontroller
Package type: LQFP32
Description: Mainstream Access line 8-bit MCU with 8 Kbytes Flash, 16 MHz CPU, integrated EEPROM
The STM8S103F2/x3 access line 8-bit microcontrollers offer 8 Kbytes Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual (RM0016) refers to devices in this family as low-density. They provide the following benefits: performance, robustness, and reduced system cost.

Device performance and robustness are ensured by advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.

The system cost is reduced thanks to an integrated true data EEPROM for up to 300 k write/erase cycles and a high system integration level with internal clock oscillators, watchdog and brown-out reset.

Key Features:
● Pin count: 32
● Maximum number of GPIOs (I/Os): 28 (including 21 high sink outputs)
● High sink I/Os: 21
● Program memory: 8 Kbytes Flash
● RAM: 1 Kbytes
● True data EEPROM: 640 bytes
● Communication interfaces:
  - UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
  - SPI interface up to 8 Mbit/s
  - I2C interface up to 400 kbit/s
● Operating voltage: 2.95 to 5.5 V
● Unique ID (96-bit unique key for each device)


Documents & Files:
CD00226640.pdf
Datasheet
CD00190271 RM0016 Reference manual .pdf
RM0016 Reference manual
CD00194637 AN2752 Getting started with the STM8S and STM8A .pdf
etting started with the STM8S and STM8A
CD00161709 PM0044 Programming manual.pdf
PM0044 Programming manual
Manufacturer website: [Click here]


Quantity:
Price:
26.00  EGP
per Unit
