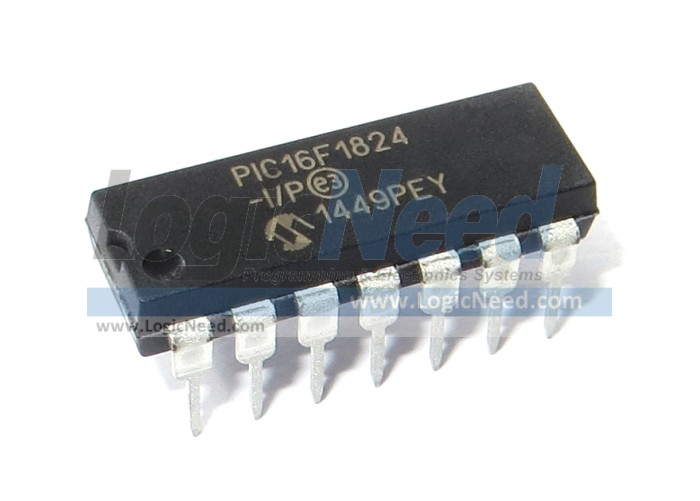

PIC16F1824 Microcontroller
Item # 102624
PIC16F1824 Microcontroller

Package type: DIP 14-pin
Description: 8-Pin Flash-Based, 8-Bit CMOS Microcontroller

- Flash Program Memory with self read/write capability
- Integrated Capacitive mTouch Sensing Module
- Data Signal Modulator Module
- MI2C, SPI, EUSART w/auto baud
- 2 ECCP & 2 CCP (Enhanced/Capture Compare PWM)
- Comparators with selectable Voltage Reference
- 25mA Source/Sink current I/O
- Extended Watchdog Timer (EWDT)
- Enhanced Power-On/Off-Reset
- Brown-Out Reset (BOR)
- In Circuit Serial Programming (ICSP)
- On Board In-Circuit Debug
- Wide Operating Voltage (1.8V – 5.5V)

Features:
●  Program Memory: 7 Kbytes
●  Program Memory Type: Flash
●  CPU Speed: 8 MIPS
●  RAM : 256 Bytes
●  Data EEPROM: 256 bytes
●  Digital Communication Peripherals: 1-UART, 1-A/E/USART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
●  Capture/Compare/PWM Peripherals: 2 CCP, 1 ECCP (Full-Bridge), 1 ECCP (Half-Bridge)
●  Timers: 4 x 8-bit, 1 x 16-bit
●  ADC: 8 ch, 10-bit
●  Comparators: 2
●  Cap Touch Channels: 8
●  Operating Voltage Range: 1.8V to 5.5V
●  Temperature Range (C): -40 to 125
●  Max Operating Frequency: 32 MHz
●  Internal Oscillator: Yes (Internal 32MHz oscillator)
●  I/O Pin Count: 12 (25mA sink/source per I/O)
●  Pin Count: 14
●  XLP: Yes

Documents & Files:
Manufacturer website: [Click here]


Quantity:
Price:
$2.11  USD
per Unit
