PIC12F675  Microcontroller
Item # 10264
Microchip PIC12F675
8-Pin, Flash-Based 8-Bit CMOS Microcontrollers
Package type: DIP 8-pin
Description: This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into an 8-pin package and features 4 channels for the10-bit Analog-to-Digital (A/D) converter, 1 channel comparator and 128 bytes of EEPROM data memory.
This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.


Features:
● Program Memory: 1.75 Kbytes.
● Data Memory: 64 Bytes
● Data EEPROM: 128 Bytes.
● CPU Speed: 5 MIPS
● Timers: 1 x 8-bit, 1 x 16-bit
● ADC: 4 ch, 10-bit
● Comparators: 1
● Operating Voltage Range: 2V to 5.5V
● Internal Oscillator: Yes
● Max Operating Frequency: 20 MHz
● Cap Touch Channels: 4
● Temperature Range: -40C to +85C
● I/O Pin Count: 6
● Pin Count: 8
● Package Type: 8-Lead PDIP

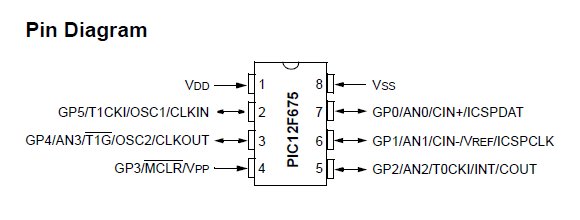

Pin Diagrams

Documents & Files:
41190G.pdf
PIC12F629 / PIC12F675 Data Sheet
Manufacturer website: [Click here]

RoHS Compliant
China EFUP

Currently
Out of stock
Price:
17.00  EGP
per Unit
