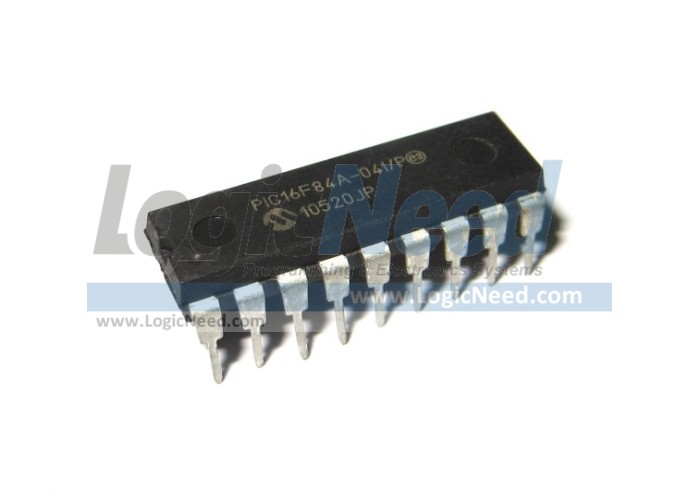

Description: CMOS Flash/EEPROM-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 18-pin package.
Features:
● Program Memory: 1.75 Kbytes.
● Program Memory Type: Flash
● RAM Data Memory: 68 Bytes
● Data EEPROM: 64 Bytes
● CPU Speed: 5 MIPS
● Timers: 1 x 8-bit
● ADC: None
● Comparators: None
● Operating Voltage Range: 2V to 5.5V
● Internal Oscillator: No
● Max Operating Frequency: 20 MHz
● I/O Pin Count: 13 (with 25mA source/sink per I/O)

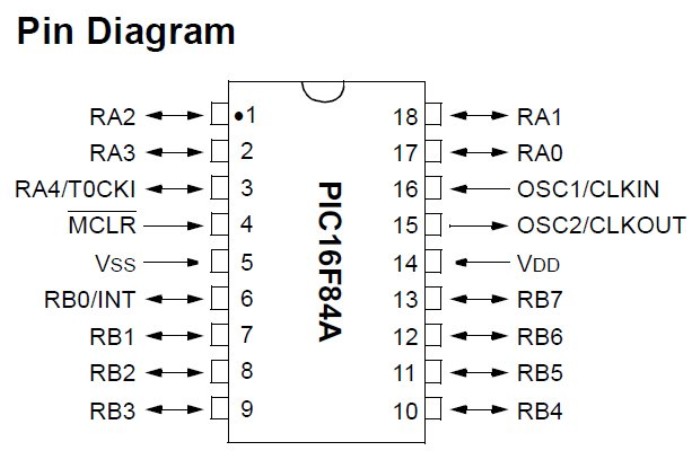

● Pin Count: 18
