Concentrate Liquid Photoresist Developer D40  (120ml)
Item # 15052
Volume: 120 millilitre

This 120 ml bottle of D40 Concentrate developer will makeup 6.5 litter of developer which will be able to develop about 1.8 m2 of 40 micron thick photoresist dry film.
Description:

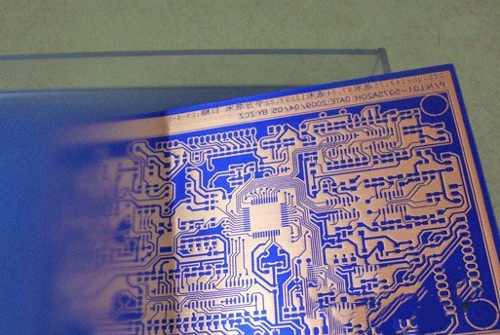

For PCB Photo Fabrication Process
Designed for negative acting photoresist dry films and liquid inks
Ideal for the finest circuit board applications.
Developing time less than 1 minute
Long Life
Indefinite Shelf Life
Bottle volume: 120 ml

This 120 ml bottle of D40 Concentrate developer will makeup 6.5 litter of developer which will be able to develop about 1.8 m2 of 40 micron thick photoresist dry film.

Working solution makeup formula:
Volume of D40 (ml) = 18 X Sump Size (liter)

To make the working solution: use 0.018 liter (18 mL) of D40 per liter of water.

The working solution can be reused many times until it becomes ineffective, then you will have to prepare a new batch.



For electronics labs and industrial use only.
