50 cm Length of Pre-Crimped End Terminals 1 mm Wire  (6 Wires)
Item # 122350
6 Copper Wires, 50 cm length with Pre-Crimped End Terminals
Description: Pre-Crimped End Terminals 1 mm Wire with 50 cm length (6 Wires)

Wire Specifications:
●  Conductor: Flexible Copper conductor (class 5 )
the core is formed by a large number of thin wires
No. of wires: ≈ 32
max. wire-Ø:  0.21 mm
●  Copper Purity: 99.9%
Nominal Cross Section: 1 mm2
●  Insulation: PVC (Polyvinyl Chloride)
●  Insulation Thickness: 0.6 mm
Voltage Rating (Uo/U): 300/500V
Current Rating (enclosed in conduit): 10 A
Temperature Rating:
        Fixed: -30°C to +70°C
        Flexed: -5°C to +70°C
Approx. Overall Diameter: 2.46 mm
Manufacturer: EL SEWEDY CABLES

End Terminals Specifications:
●  End Terminal Code: E1008
●  Material: Copper
Plating: Tin plated
●  Insulation: PVC (Polyvinyl Chloride)
●  Color: Standard According to wire size -  Red

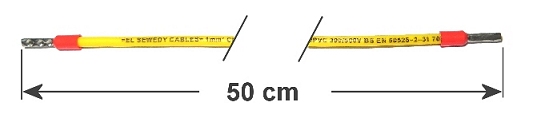

Total Length: 50cm








Quantity:
Price:
27.00  EGP
per Unit
