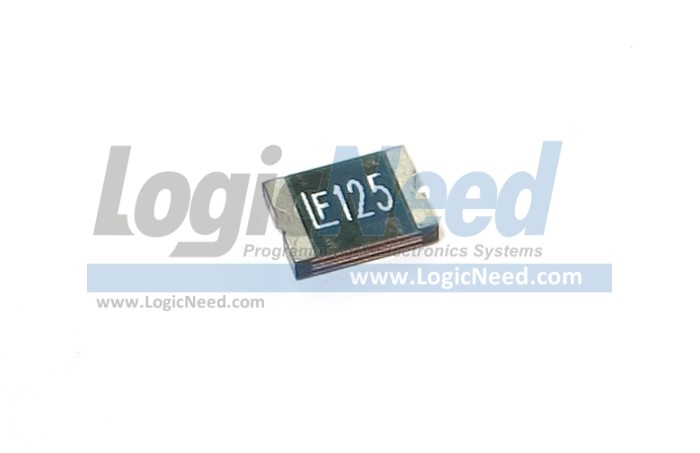

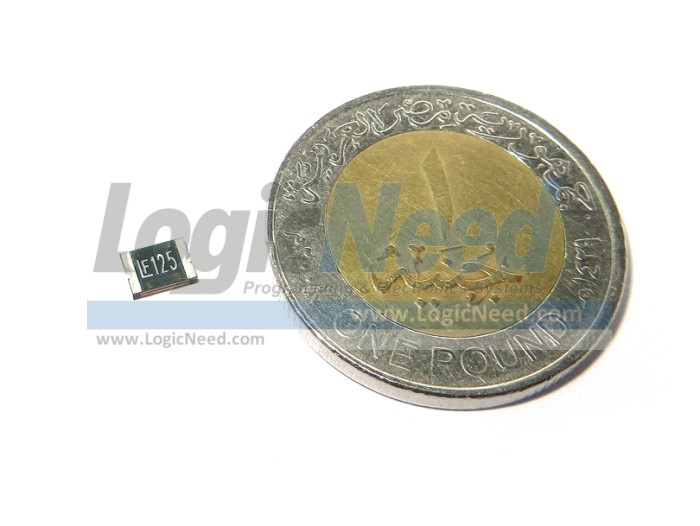

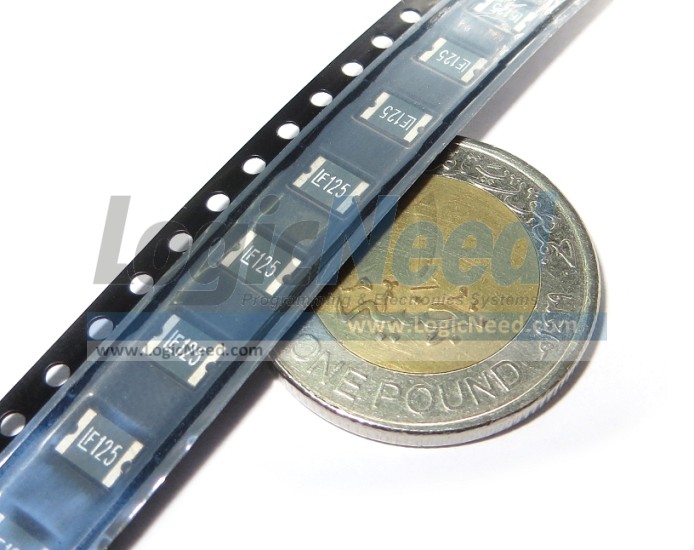

Description: The 1812L series device provides surface mount overcurrent protection for applications where resettable protection is desired.
Features:
● RoHS compliant and lead-free
● Fast response to fault currents
● Compact design saves board space
● Low resistance
● Compatible with high temperature solders
● Low-profile
● SMD Package Type: 1812
- Dimensions (inches): 0.18 x 0.125
- Dimensions (mm): 4.6 x 3.0
Applications:
• Plug and play protection for motherboards and peripherals
• USB peripherals
• PCI cards
• Game console port protection
Electrical Characteristics: | ● | Hold current ( I hold ) : 1.25A
maximum current device will pass without tripping in 20°C still air. |
| ● | Trip current ( I trip ) : 2.5A minimum current at which the device will trip in 20°C still air. |
| ● | Maximum fault current ( I max ) : 100A
Maximum fault current device can withstand without damage at rated voltage (Vmax) |
| ● | Maximum voltage ( V max ): 16V dc Maximum voltage device can withstand without damage at rated current (I max) |
| ● | Resistance ( R min ) : 0.05 Ω Minimum resistance of device in initial (un-soldered) state. |
