LP2985AIM5-5.0  5V, 150mA, Low-Noise, Ultra-Low-Dropout Voltage Regulator with Enable
Item # 20352
5.0V  150mA Low Noise LDO Voltage Regulator


Fixed Output Voltage: 5.0V
Package type: SOT-23-5
Description: The LP2985-N is a fixed-output, wide-input, low-noise, low-dropout voltage regulator supporting an input voltage range from 2.5 V to 16 V and up to 150 mA of load current.

The LP2985-N is a linear voltage regulator operating from 2.5 V to 16 V on the input and regulates voltages

The LP2985AIM5-5.0 output voltage is 5.0V. Additionally, the LP2985-N (new chip) has a 1% output accuracy across load and temperature that can meet the needs of low-voltage microcontrollers (MCUs) and processors.

Low output noise of 30 μVRMS (with 10-nF bypass capacitors) and wide bandwidth PSRR performance of greater than 70 dB at 1 kHz and 40 dB at 1 MHz help attenuate the switching frequency of an upstream DC/DC converter and minimize post regulator filtering.

The internal soft-start time and current-limit protection reduce inrush current during start up, thus minimizing input capacitance. Standard protection features, such as overcurrent and overtemperature protection, are included.

The LP2985-N is available in a 5-pin, 2.9 mm × 1.6 mm SOT-23 (DBV) package.

 ●  VIN range: 2.5 V to 16 V
 ●  VOUT Fixed output: 5.0V
 ●  VOUT accuracy:
         – ±1% for A-grade legacy chip
         – ±1.5% for standard-grade legacy chip
         – ±0.5% for new chip only
 ● Output accuracy over load, and temperature:
         – ±1% for new chip
 ● Output current: Up to 150 mA
 ● Low IQ (new chip): 71 μA at ILOAD = 0 mA
 ● Low IQ (new chip): 750 μA at ILOAD = 150 mA
 ● Shutdown current:
         – 0.05 μA (typ) for legacy chip
         – 1.12 μA (typ) for new chip
 ● Low noise: 30 μVRMS with 10-nF bypass capacitor
 ● Output current limiting and thermal protection
 ● Stable with 2.2-μF ceramic capacitors
 ● High PSRR: 70 dB at 1 kHz, 40 dB at 1 MHz
 ● Operating junction temperature: –40°C to +125°C
 ● Package: 5-pin SOT-23 (DBV)
 ● Ultra-low dropout voltage

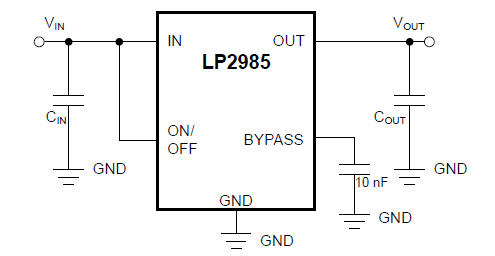

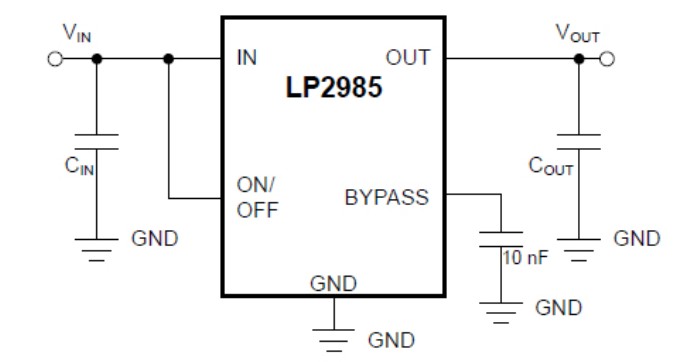

Typical Application Circuit:

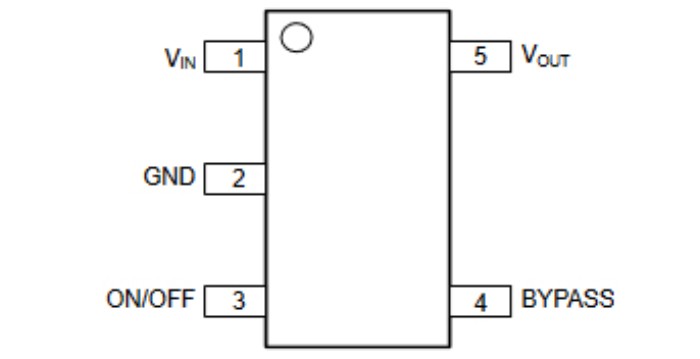

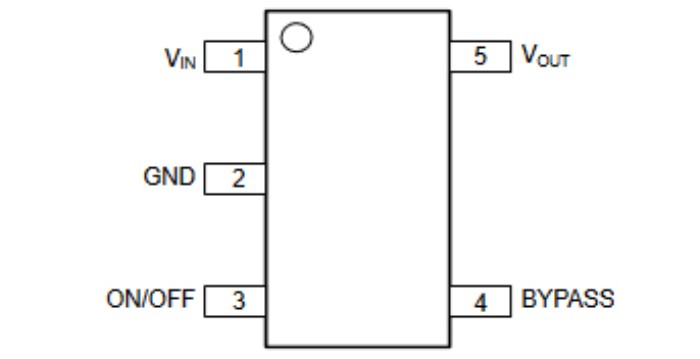

Pin Configuration and Functions:

Marking Code: L0UA
Documents & Files:
Manufacturer website: [Click here]

16.00  EGP
per Unit
