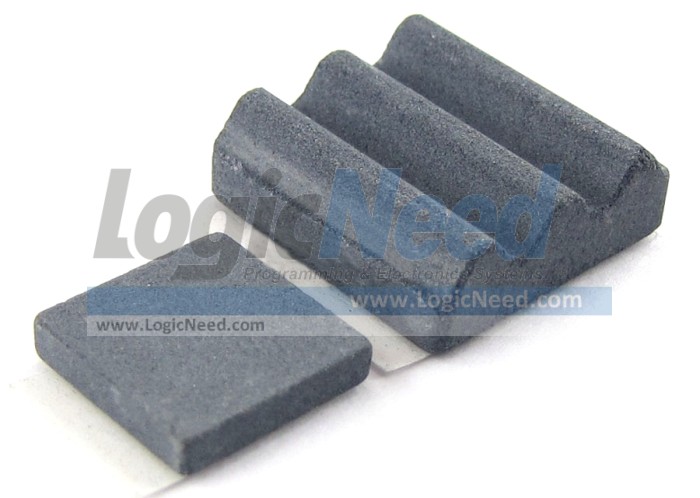

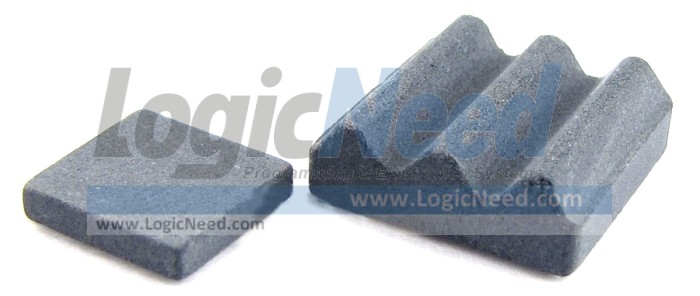

Description: 2-Pieces of self adhesive Ceramic Heat Sink Cooler for Raspberry PI
USAGE:
● The product is used for Raspberry PI 3 and PI 2 only.
● It dissipates heat off your Raspberry PI 3 and PI 2 in high efficiency.
FEATURES:
● 800% higher heat radiation efficiency than Copper/Aluminum heat sink.
● ultra slim.
● ultra light.
● Simple installation;

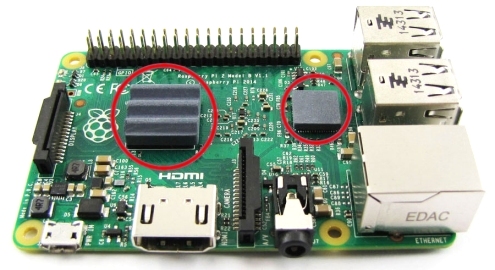

● Perfectly matched to Raspberry PI 3 and PI 2 board.
MATERIAL:
● the heat sink body is made of 100% SiC (silicon carbide).
COLOR:
● Black.
SIZE:
● 15mm*15mm*5.0mm
● 10mm*10mm*2.0mm
WEIGHT:
● Net weight: 2.9g
IN THE PACKAGE:
● SIC Ceramic Heat Sink * 2pcs
DATA SHEET:
| Porosity | 20% |
| Water absorption | 15.77% |
| Mohs' hardness | 5~6 N/mm2 |
| Flexural strength | 47.5 kgf/cm2 |
| Bulk density | 1.95 g/cm3 |
| Resistance insulation | 10 GΩ |
| Thermal conductivity | 8 w/m-k |
| Maximum operating temperature | <700 °C |
| Dielectric Withstanding Voltage | 5 KV |
| Linear thermal expansion coefficient | 4.13 10¯6 |
| Main composition | 90%↑ SiC |
