Raspberry Pi 3 Model B   Made in UK
Item # 16077
Raspberry Pi 3 Model B
1GB 1.2GHz 64bit Quad-Core CPU, WiFi & Bluetooth


Original RS-Version
Made in the United Kingdom


Description:

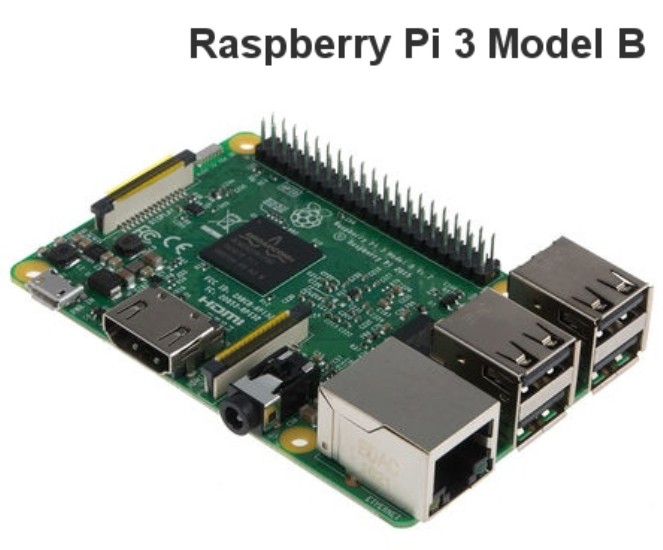

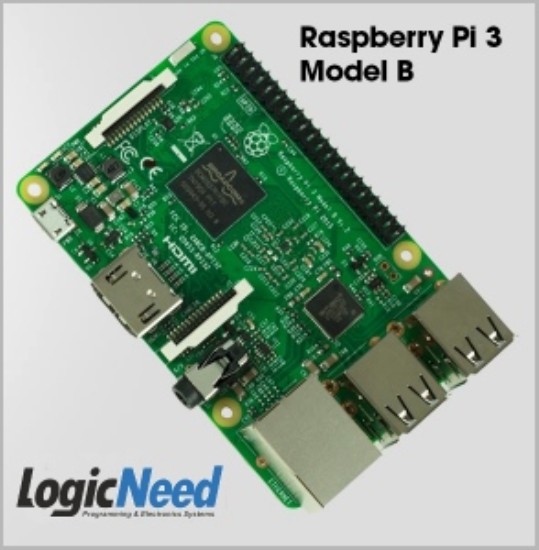

Raspberry Pi 3 Model B

The Raspberry Pi 3 Model B is the third generation Raspberry Pi. This powerful credit-card sized single board computer can be used for many applications and supersedes the original Raspberry Pi Model B+ and Raspberry Pi 2 Model B. Whilst maintaining the popular board format the Raspberry Pi 3 Model B brings you a more powerful processer, 10x faster than the first generation Raspberry Pi. Additionally it adds wireless LAN & Bluetooth connectivity making it the ideal solution for powerful connected designs.

The new 5V1 2.5A power supply is required as well as the NOOBS software rev. 1.5 for the Raspberry Pi 3 Model B.





 Specifications:
Processor:
Broadcom BCM2387 chipset.
1.2GHz Quad-Core ARM Cortex-A53
802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)

GPU: Dual Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode.
Memory: 1GB LPDDR2
Operating System:
Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT
Dimensions: 85 x 56 x 17mm
Power: Micro USB socket 5V1, 2.5A


 Connectors:
Ethernet: 10/100 BaseT Ethernet socket
Video Output:
HDMI (rev 1.3 & 1.4
Composite RCA (PAL and NTSC)
Audio Output:
Audio Output 3.5mm jack, HDMI
USB 4 x USB 2.0 Connector
GPIO Connector: 40-pin 2.54 mm (100 mil) expansion header: 2x20 strip Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines
Camera Connector: 15-pin MIPI Camera Serial Interface (CSI-2)
Display Connector: Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane
Memory Card Slot: Push/pull Micro SDIO

Raspberry Pi Downloads
Documents & Files:
Manufacturer website: [Click here]


Quantity:
Price:
1,360.00  EGP
per Unit
