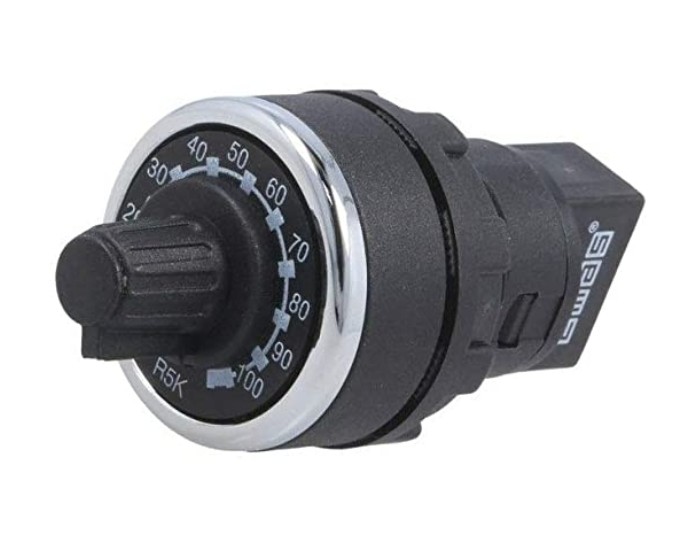

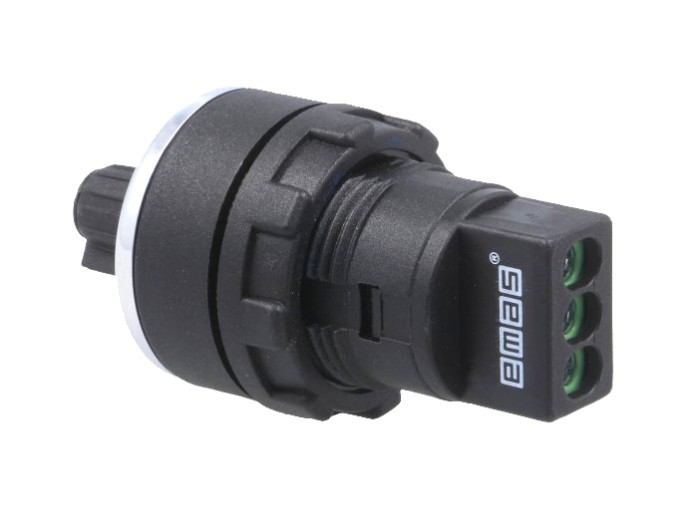

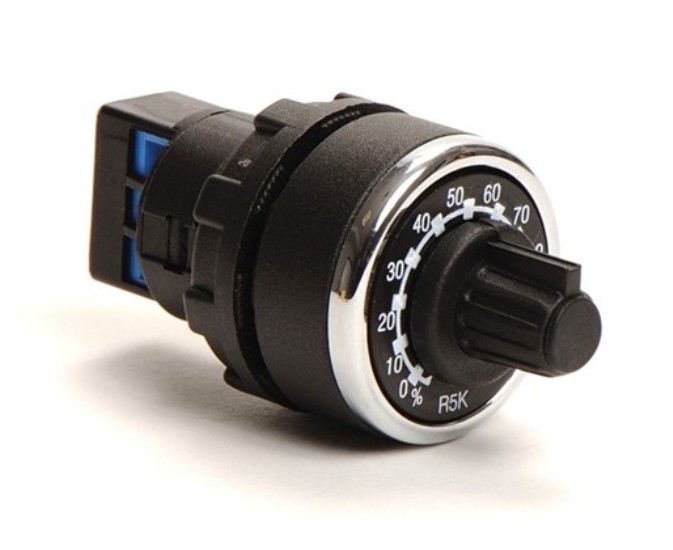

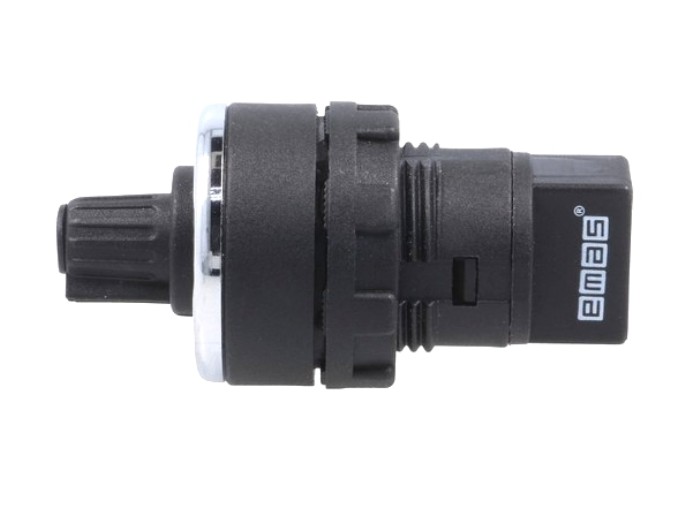

Plastic Rotary Potentiometer 22mm Hole, Resistance 5K Ohm
Item # 136012
Made in Turkey
Description: Plastic 5 kΩ 22 mm Potentiometer, single turn

Product Code: BPR05K
Product: Potentiometer

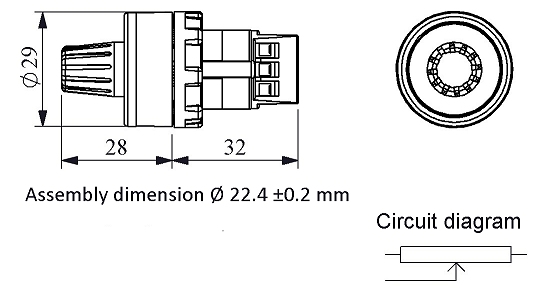

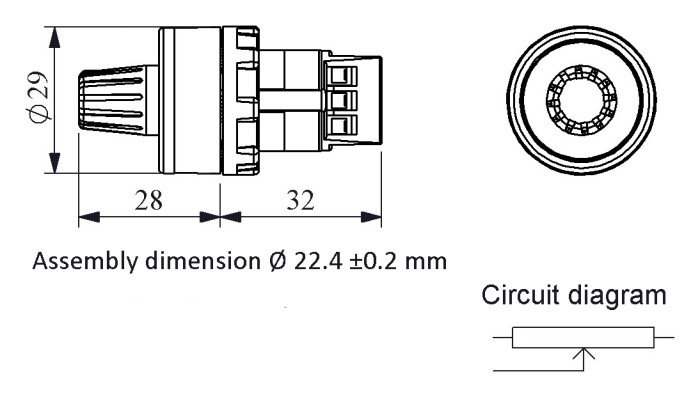

Dia: 22 mm
Dielectric Strength (Contact-Contact): 1750 Vrms
Isolation Resistance: 10 MΩ min. (500V DC)
Operating Temperature: -15 / + 80 °C
Pollution Degree: 3
Protection Degree: IP65
Cable Section: 0.75 - 1.5 mm2
Screw Torque: 1.5 Nm
Maximum Current: 17.30 mA
Maximum Power: 1.5 W (70°C)
Resistive Value: 5 kΩ
Spin Angle: 270°
Serial: B Series Plastic
Standard: IEC 60393-1

Specifications:
 - Non-flammable V0 PA6.6
 - IP65 protection from front side

Documents & Files:
Manufacturer website: [Click here]


Quantity:
Price:
$11.61  USD
per Unit
