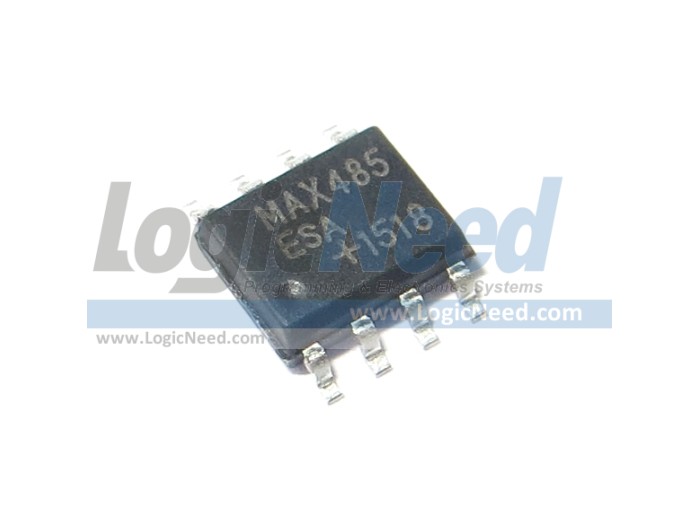

MAX485 Low-Power RS-485 Transceiver (SMD)
Item # 203181
MAX485
Package type: SO 8-pin
Description:
The MAX481, MAX483, MAX485, MAX487-MAX491, and MAX1487 are low-power transceivers for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The MAX483, MAX487, MAX488, and MAX489 feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps.

The driver slew rates of the MAX481, MAX485, MAX490, MAX491, and MAX1487 are not limited, allowing them to transmit up to 2.5Mbps.

Features:
 • Half/Full duplex: Half
 • Data Rate (Mbps): 2.5
 • Slew-Rate Limited: No
 • Receiver/Driver Enable: Yes
 • Number of  Receivers on Bus: 32
 • Pin Count: 8
Applications:
 • Low-Power RS-485 Transceivers
 • Level Translators
 • Transceivers for EMI-Sensitive Applications
 • Industrial-Control Local Area Networks


Documents & Files:
MAX1487-MAX491.pdf
Datasheet
AN367.pdf
Explanation of Maxim RS-485 Features
Manufacturer website: [Click here]


Quantity:
Price:
$0.44  USD
per Unit
