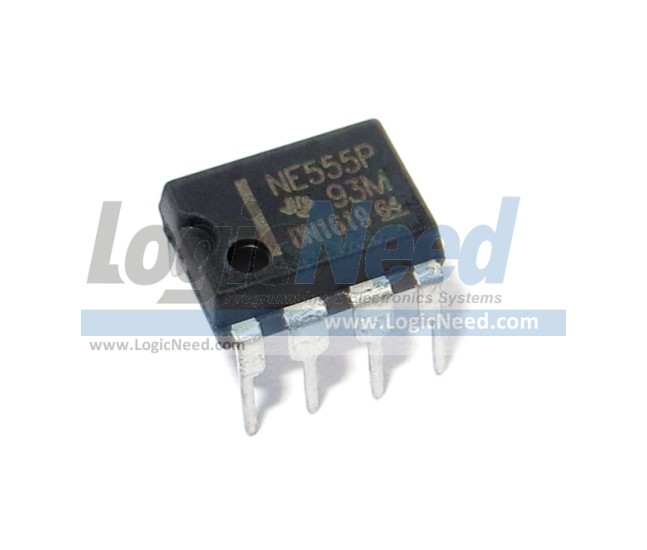

NE555P  Precision Timer
Item # 20557
NE555  Single Precision Timer

Pb-Free (RoHS)
Package type: DIP 8-pin
Description:
These devices are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor

Features:
 ● Timing From Microseconds to Hours
 ● Astable or Monostable Operation
 ● Adjustable Duty Cycle
 ● TTL-Compatible Output Can Sink or Source Up to 200 mA

Parametrics:
Frequency (Max): 0.1 MHz
VCC (Min): 4.5 V
VCC (Max): 16 V
Iq (Typ): 2000 uA
Operating Temperature Range : 0 to 70 °C
Documents & Files:
ne555.pdf
Datasheet
Manufacturer website: [Click here]

RoHS Compliant

Quantity:
Price:
5.00  EGP
per Unit
