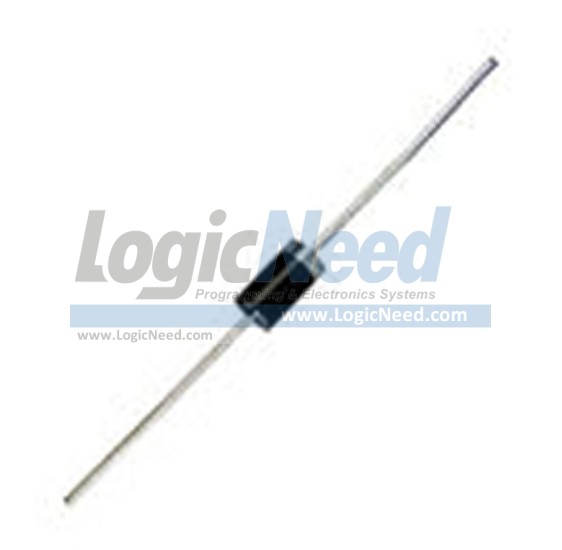

SF28 Super Fast Rectifier 2A 600V
Item # 2319
Super-Fast Recovery Rectifier
Made in India

Package type: DO-15
Description:

Features:
● Low cost construction
● Fast switching for high efficency.
● Low reverse leakage
● High forward surge current capability
● High temperature soldering guaranteed: 260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension

Characteristics:
● Maximum Repetitive Peak Reverse Voltage(VRRM): 600 Volts
● Maximum Average Forward Rectified Current(IAV): 2.0 Amp
● Maximum DC Blocking Voltage: 600 Volts
● Maximum Reverse Recovery Time (trr): 35 ns
● Operating Junction Temperature Range: -55 to +150 ℃

Documents & Files:
SF21 - SF28.pdf
Datasheet
