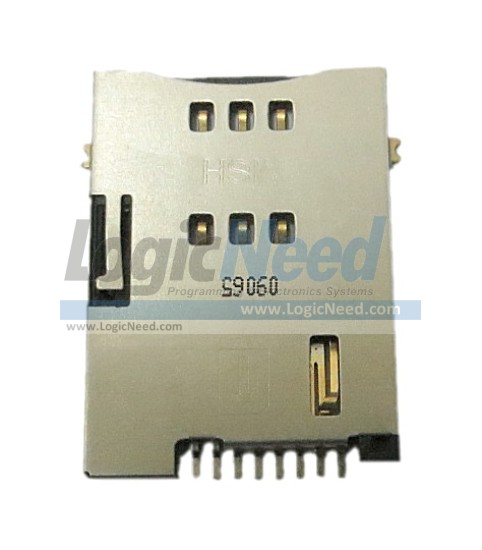

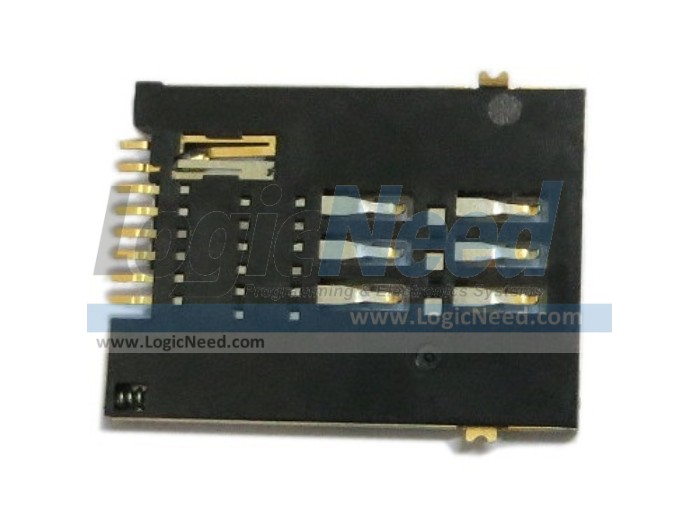

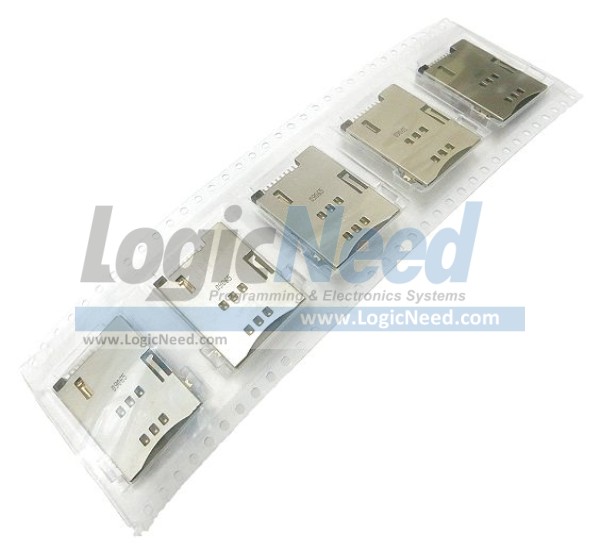

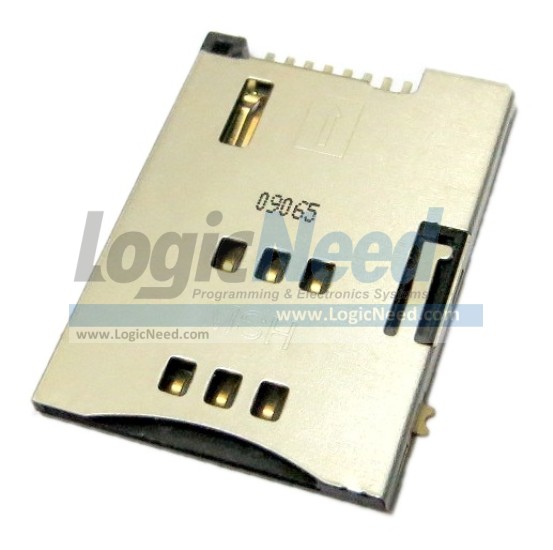

SIM Card Socket (Push-Push type)
Item # 30351
molex SMD SIM Card Socket.
SIM Card Holder with 2 Detect Pins, 6 Circuits, Push-Push Style, Housing Height 1.80mm, without Pegs, Lead-Free.


Description: This specification defines the performance for the SIM Card connector push-push type with detect pin

● Card Detection Switch: Yes
● Circuits (Loaded): 6
● Durability (mating cycles max): 2,500
● Ejector Button: No
● Entry Angle: Horizontal
● Material-Metal: Copper Alloy
● Material-Plating Termination: Gold
● Material-Resin: High Temperature Thermoplastic
● Termination Interface Style: Surface Mount
● Operating Temperature Range: -30°C to +85°C
● Current-Maximum per Contact: 0.5A
● Voltage - Maximum: 50V DC
● Shielded: Yes
● Ports: 1

Manufacturer part number: 47553-0001
Documents & Files:
0475530001_SIM_CARD_SOCKET.pdf
Datasheet
475530001_sd.pdf
Drawing PDF
PS-47553-201.pdf
Product Specification
Manufacturer website: [Click here]
Similar products:
$0.67  USD
$1.78  USD


China EFUP

Quantity:
Price:
$1.44  USD
per Unit
Wholesale Pricing:
Qty.Price per Unit
1 - 49$1.44  USD
50 - ∞$1.39  USD
