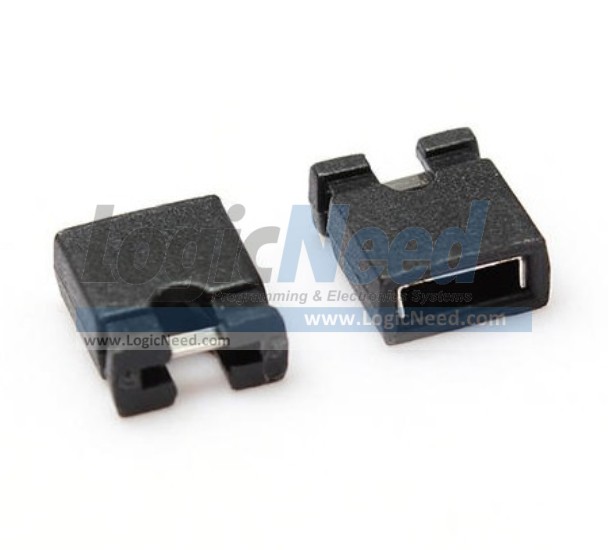

2-Pin jumper
Item # 3045
Jumper (Busbar), Shunt, Microshunt Jumper, Header Strips, 2 Ways.


Description: Shunt Jumper - 2.54mm,  2 Pin


Features:
• Dual wipe contacts
• Side and end stackable
• Mates to 2.54 mm pin headers
• Pitch: 0.100" (2.54mm)
• Gender: Female Sockets
• Number of Positions or Pins (Grid):  2 (1 x 2)
• Type: Open Top

Specifications
Ratings:
Current : 3A
Dielectric Strength : 650V AC RMS for 1 minute
Contact Resistance : 20mΩ max.
Insulator Resistance : 100MΩ min.
Material:
Plastic : PBT, Glass-filled
Contact : Phosphor Bronze
Temperature Range : -55°C to +105°C

Documents & Files:
Shunt.pdf
Datasheet


Quantity:
Price:
$0.05  USD
per Unit
