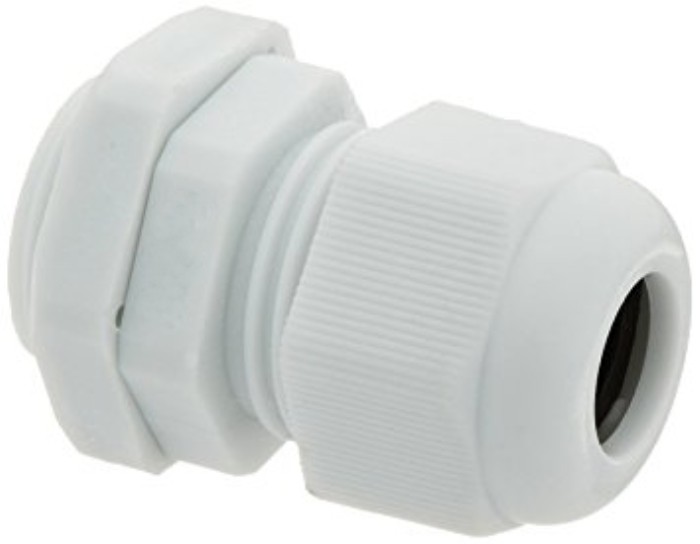

PG16 Nylon Cable Gland  With Locknut
Item # 316
Cable Gland

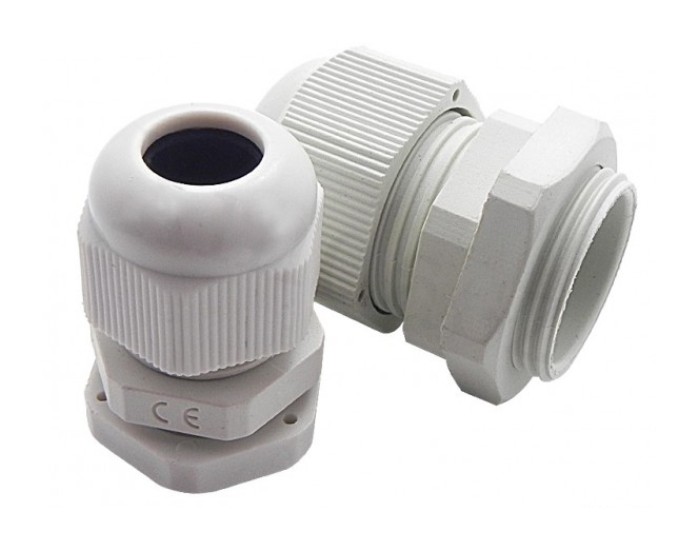

Description: Waterproof Cable Gland Connector With Locknut

Technical Features:
● Anti vibration cap
● Each gland comes complete with locknut






Product information:
● Material: Plastic/Nylon
● Model Number: PG16
● Mounting Thread Size: PG16
● Mounting Thread O.D.:  22.5mm
● Mounting Thread Length:  10mm
● Maximum Acceptable Cable Diameter:  14mm
● Minimum Acceptable Cable Diameter: 10mm
● Locknut Included: Yes
● Color: While
● Quantity: 1 piece

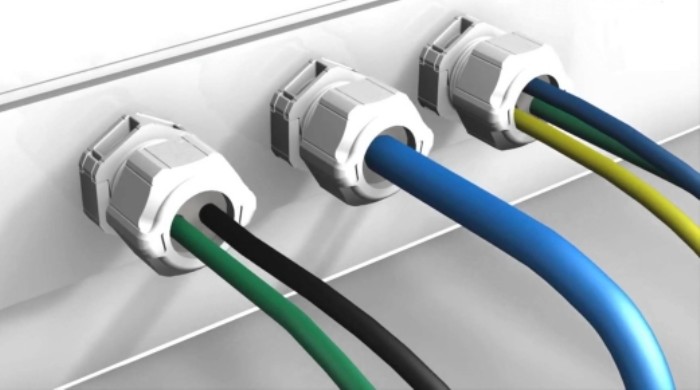

Application Areas:
● Repair and Maintenance
● Machine Tool
● Bulk Head Wiring
● Automotive
● Robotics
● General Wiring Applications
● Panel Building
● Outside Plant
● Lighting
● Professional Equipment
● Electrical Junction Boxes



Thread Size
(PG)
Acceptable Cable Diameter
(mm)
Mounting Thread O.D.
TD  (mm)
Mounting Thread Length
TL  (mm)
PG7 3 ∼ 6.5 12.5 10
PG9 4 ∼ 8 15.2 10
PG11 5 ∼ 10 18.6 10
PG13.5 6 ∼ 12 20.4 10
PG16 10 ∼ 14 22.5 10
PG21 13 ∼ 18 28.3 12
PG29 18 ∼ 25 37 12



Useful Links:
● What is Cable Gland
● Panzergewinde (PG cable glands standard)

Documents & Files:
PG_to_Metric.pdf
Converting From PG to Metric Threads
