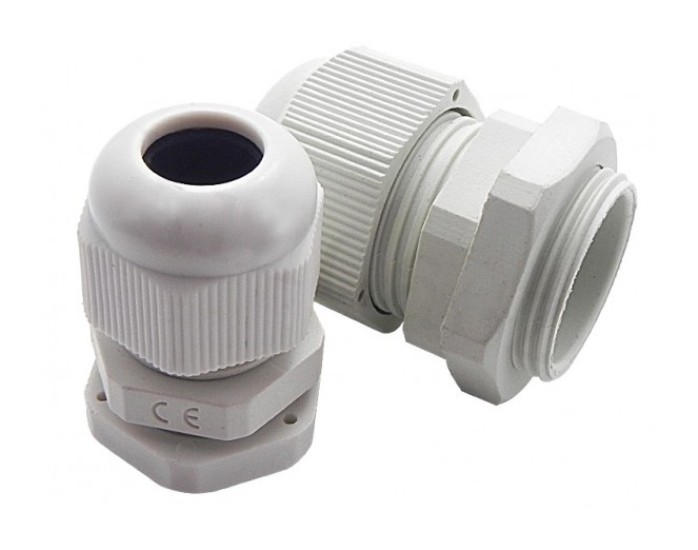

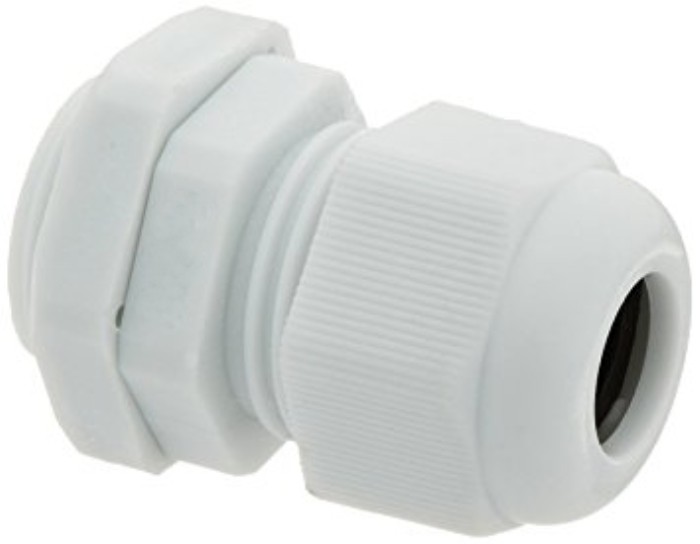

PG11 Nylon Cable Gland  With Locknut
Item # 311
Cable Gland
Description: Waterproof Cable Gland Connector With Locknut

Technical Features:
● Anti vibration cap

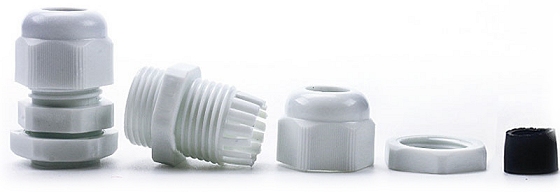

● Each gland comes complete with locknut






Product information:
● Material: Plastic/Nylon
● Model Number: PG11
● Mounting Thread Size: PG11
● Mounting Thread O.D.:  18.6mm
● Mounting Thread Length:  8mm
● Maximum Acceptable Cable Diameter:  10mm
● Minimum Acceptable Cable Diameter: 5mm
● Locknut Included: Yes
● Color: While
● Quantity: 1 piece

Application Areas:
● Repair and Maintenance
● Machine Tool
● Bulk Head Wiring
● Automotive
● Robotics
● General Wiring Applications
● Panel Building
● Outside Plant
● Lighting
● Professional Equipment
● Electrical Junction Boxes



Thread Size
(PG)
Acceptable Cable Diameter
(mm)
Mounting Thread O.D.
TD  (mm)
Mounting Thread Length
TL  (mm)
PG7 3 ∼ 6.5 12.5 10
PG9 4 ∼ 8 15.2 10
PG11 5 ∼ 10 18.6 10
PG13.5 6 ∼ 12 20.4 10
PG16 10 ∼ 14 22.5 10
PG21 13 ∼ 18 28.3 12
PG29 18 ∼ 25 37 12



Useful Links:
● What is Cable Gland
● Panzergewinde (PG cable glands standard)

Documents & Files:
PG_to_Metric.pdf
Converting From PG to Metric Threads
