AO3400  N-Channel MOSFET transistor (SMD)
Item # 455
AO3400  N-Channel MOSFET transistor.
VDS : 30 V
I:  5.8 A

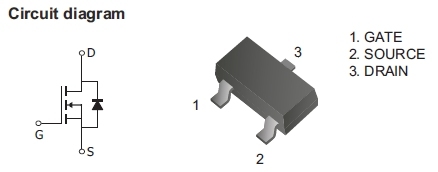

Package type: SOT-23
Description: The AO3400 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON). This device is suitable for use as a load switch or in PWM applications.

Maximum drain-source voltage  VDS : 30 V
Maximum gate-source voltage  VGS : ±12 V
Maximum continuous drain current  I:  5.8 A
Maximum power dissipation P: 1.4 W
Junction and Storage Temperature Range:  -55 to 150 °C

Drain-source on-resistance:
    at (VGS =-10V):  < 28 mΩ
    at (VGS=-4.5V) : < 33 mΩ
    at (VGS=-2.5V):  < 52 mΩ

Marking Code: A0xx
Documents & Files:
AO3400.pdf
Datasheet
AO3400_Marking.pdf
Marking
SOT-23-3L.pdf
Package
AO3400_ReliabilityReport.pdf
Reliability Report
Manufacturer website: [Click here]

RoHS Compliant

Quantity:
Price:
2.50  EGP
per Unit
