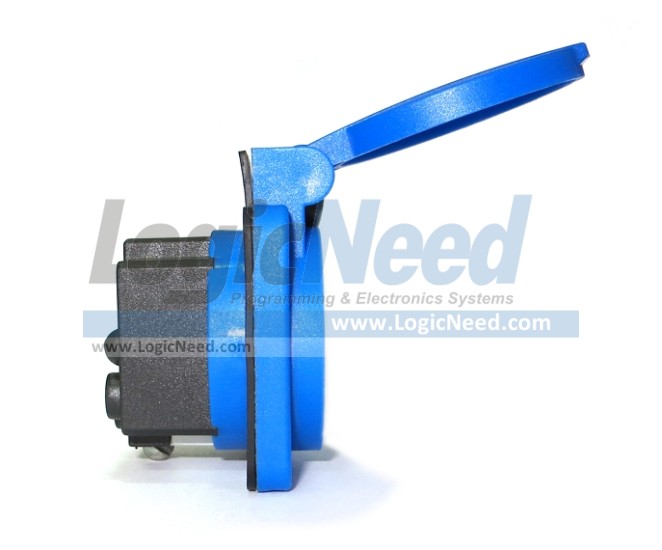

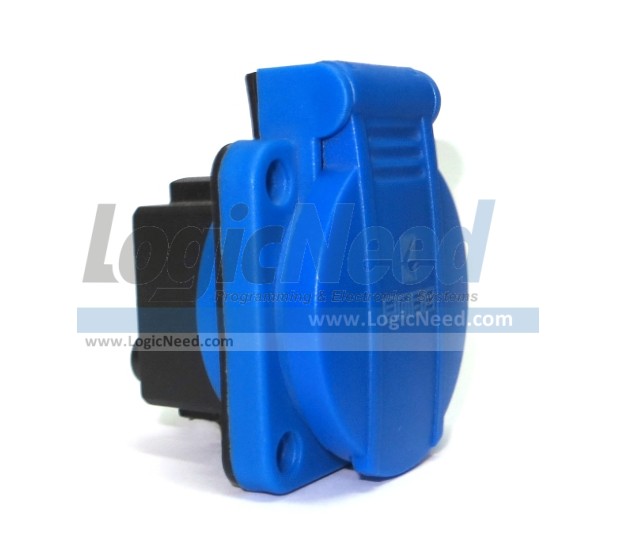

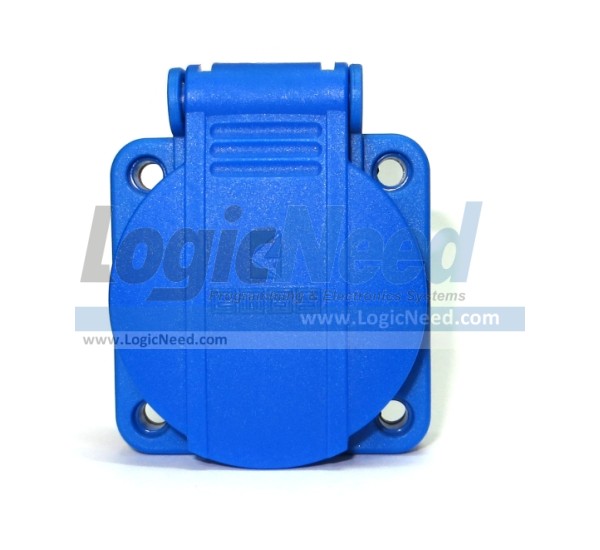

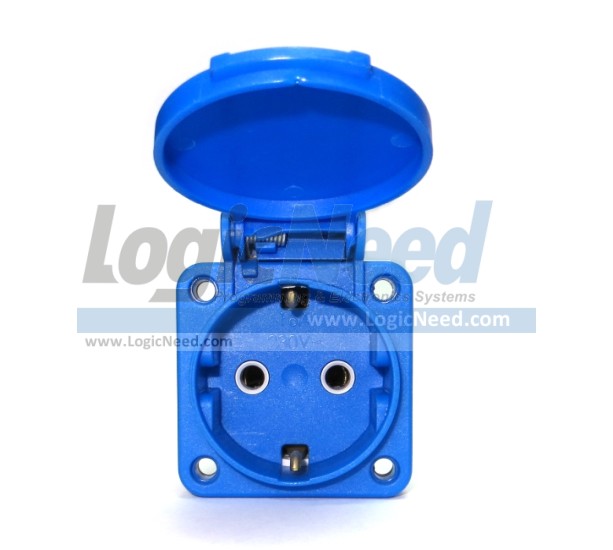

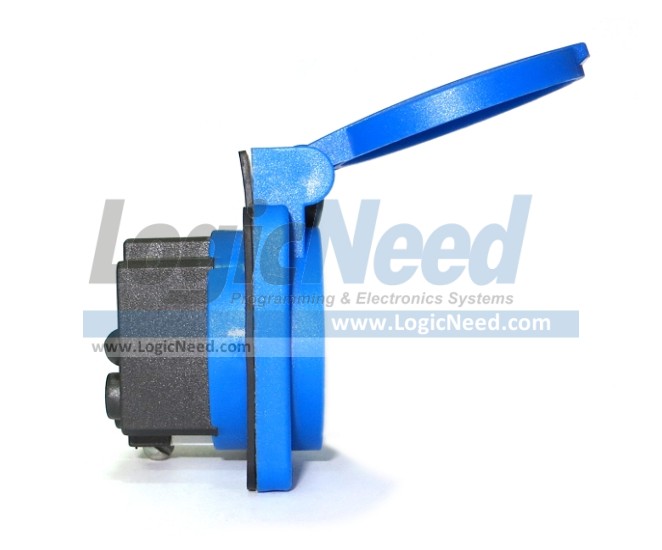

Panel Mount Power Outlet 16A / 230V with Cover
Item # 5101
European Schuko Type 1

Model: EPREU1M

Made in Turkey
Description:
Panel Mount Power socket-outlet 16A / 230V

Color: Blue
Model: EPREU1M
Type: European Schuko Type 1
Operating Current: 16A
Product: Pano Prizi
Type: Shuko Tip Priz
Feature: Schuko
Contact: 2P+E
Usage Category: AC15
Mechanical Life (Min Qty): ≥ 5.000
Electrical Life (Min Qty): ≥ 1.000
Operating Frequency (On-Off/Hour): Mech.240 Elec.120
Insulation Voltage (Ui): 690V
Impulse Withstand Voltage (Uimp): 2 kV
Dielectric Strength (Body-Contact): 1890V AC
Dielectric Strength (Contact-Contact): 2000V AC
Isolation Resistance: 10 MΩ MİN. (500 V DC)
Operating Temperature: -40 / +125 °C
Pollution Degree: 2
Protection Degree: IP20
Standards/Certificates: TS IEC 60884-1-A1+A2
Mounting Type: Panel

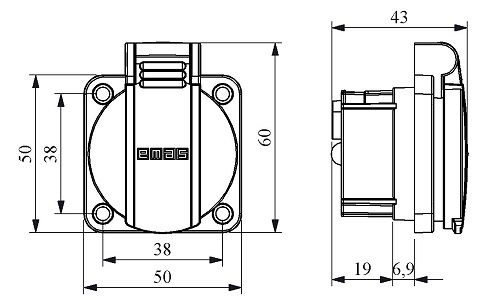

Dimensions in mm
