DS18B20 Digital Thermometer
Item # 604711

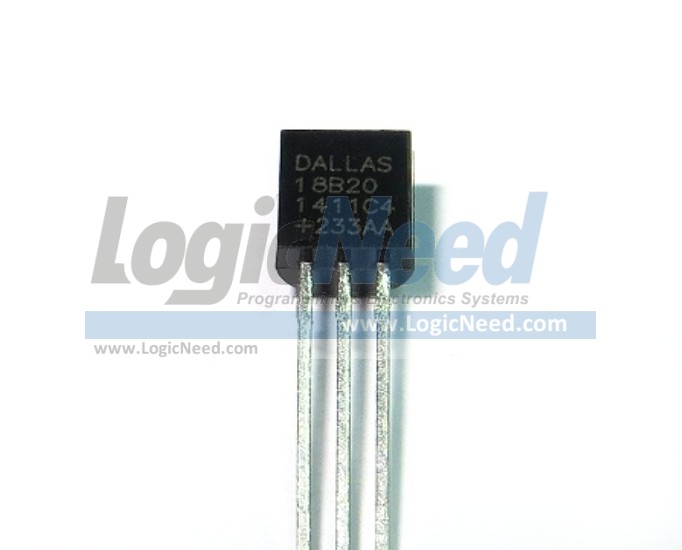

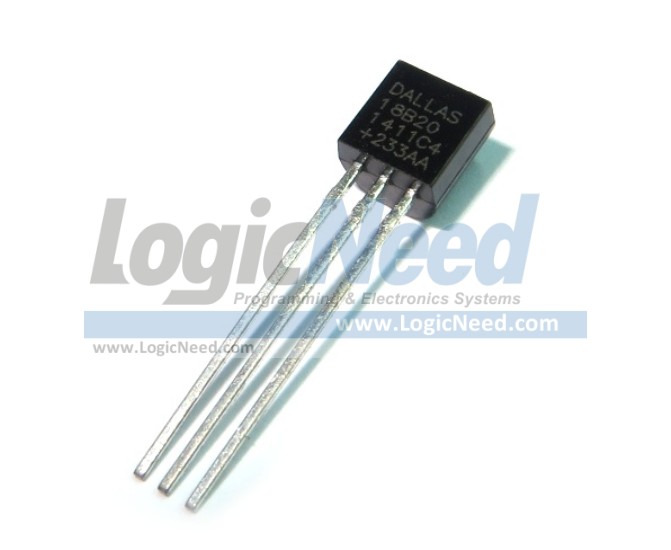

DS18B20 Programmable Resolution 1-Wire Digital Thermometer

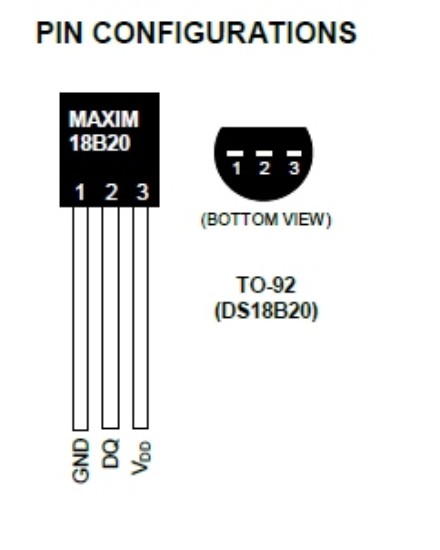

Package type: TO-92
Description: The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire® bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of -55°C to +125°C and is accurate to ±0.5°C over the range of -10°C to +85°C. In addition, the DS18B20 can derive power directly from the data line ("parasite power"), eliminating the need for an external power supply.

Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.
Key Features:
•  Unique 1-Wire Interface Requires Only One Port Pin for Communication
•  Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM
•  Multidrop Capability Simplifies Distributed Temperature-Sensing Applications
•  Requires No External Components
•  Can Be Powered from Data Line; Power Supply Range is 3.0V to 5.5V
•  Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
•  ±0.5°C Accuracy from -10°C to +85°C
•  Thermometer Resolution is User Selectable from 9 to 12 Bits
•  Converts Temperature to 12-Bit Digital Word in 750ms (Max)
•  User-Definable Nonvolatile (NV) Alarm Settings
•  Alarm Search Command Identifies and Addresses Devices Whose Temperature is Outside Programmed Limits (Temperature Alarm Condition)
•  Available in 8-Pin SO (150 mils), 8-Pin µSOP, and 3-Pin TO-92 Packages
•  Software Compatible with the DS1822

Applications Include: Thermostatic Controls, Industrial Systems, Consumer Products, Thermometers, or Any Thermally Sensitive System.
