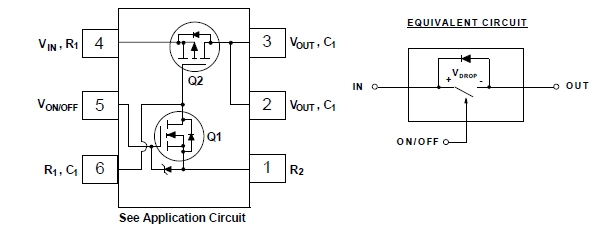

Description: This device is particularly suited for compact power management in portable electronic equipment where 2.5V to 8V input and 2.5A output current capability are needed. This load switch integrates a small N-Channel power MOSFET (Q1) which drives a large P-Channel power MOSFET (Q2) in one tiny SuperSOT
TM-6 package.
Features: | ● | VDROP=0.2V @ VIN=5V, IL=2.8A. R(ON) = 0.07Ω VDROP=0.2V @ VIN=2.5V, IL=1.9A. R(ON) = 0.105Ω. |
| ● | Control MOSFET (Q1) includes Zener protection for ESD ruggedness ( >6KV Human Body Model ). |
| ● | High performance trench technology for extremely low on-resistance. |
| ● | SuperSOTTM-6 package design using copper lead frame for superior thermal and electrical capabilities. |
