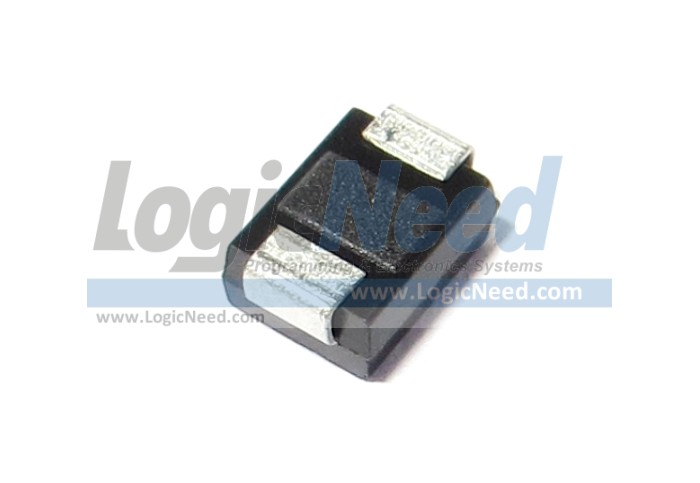

TVS Diode  SMBJ15A  15V 600W
xxx
Item # 14061
SMBJ15A
Surface Mount Transient Voltage Suppressors.
Uni-directional  TVS Diode

Package type: DO-214AA (SMB J-Bend)
Description: Transient-Voltage-Suppression (TVS) diode is an electronic component used to protect sensitive electronics from voltage spikes induced on connected wires.

Typical Applications:
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.

Features:
• 600 W peak pulse power capability
• Peak forward surge current 8.3 ms single half sine-wave: 100 A
• Stand-Off Voltage Vwm: 15 V
• Min. Breakdown Voltage vbr: 16.7 V
• Max. Breakdown Voltage vbr: 18.5 V
• Polarity: Uni-directional
• Very fast response time
• Low profile package
• Operating junction and storage temperature range: -55 to +150 °C

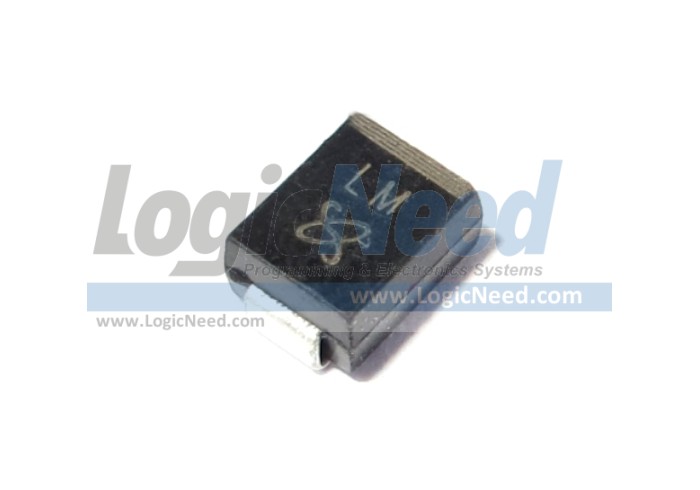

• Device Marking Code: LM

Some Help About How to Select the Right TVS Diode For Your Application:
 • TVS Diode Selection - Semtech (pdf file)
 • How To Select Transient Voltage Suppressors (pdf file)
 • TVS Diode Selection Guide Tutorial (web page)

Polarity: For uni-directional types the band denotes cathode end, no marking on bi-directional types
Marking Code: LM
Documents & Files:
smbj5a.pdf
Datasheet
protrtv.pdf
Protecting for Repetitive Transient Voltages
What_are_TVS_Diodes.pdf
What are TVS Diodes
Manufacturer website: [Click here]


Currently
Out of stock
Price:
4.50  EGP
per Unit
