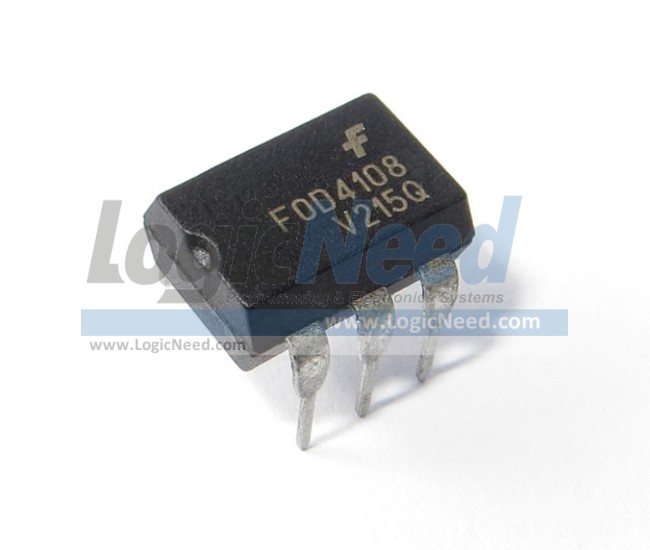

FOD4108  Snubberless (High dv/dt ) Zero Crossing TRIAC Driver Optocoupler
Item # 16020
FOD4108V
With VDE mark. DIN EN/IEC60747-5-5 Option

800V Zero Crossing Snubberless Triac Driver Optocoupler

Three-quadrant / High Commutating / High dv/dt TRIAC Driver Optocoupler
Package type: DIP 6-pin
Description: 800V Zero Crossing Snubberless Triac Driver Optocoupler

Features:
● 300 mA On-State Current
● Zero-Voltage Crossing
● High Blocking Voltage
  – 800 V (FOD4108)
● High Trigger Sensitivity
  – 2 mA (FOD4108)
● High Static dv/dt (10,000 V/μs)
● Safety and Regulatory Approvals:
  – UL1577, 5,000 VACRMS for 1 Minute
  – DIN-EN/IEC60747-5-5
● Compliance: Pb-free
● Operating Temperature: -55 to +100 °C
Applications:
● Solid-State Relays
● Industrial Controls
● Lighting Controls
● Static Power Switches
● AC Motor Starters
What is The Snubberless TRIAC Drive Optocouplers:
The Snubberless TRIAC Drive Optocouplers feature a built-in active dv/dt clamp providing best-in-class noise immunity (dv/dt) of 10,000V/μs, which is superior to the average dv/dt rating (1,500V/μs) of monolithic TRIAC drivers. This superior performance eliminates the RC snubber network required for lower dv/dt-rated monolithic opto TRIAC drivers. This saves valuable design time and reduces bill of materials (BOMs). High noise immunity makes these products ideal for noisy industrial environments as they offer a more robust solution for isolating solid-state relays, AC motor controls and lighting ballasts.

Why We Need The Snubberless TRIAC Drive Optocouplers:

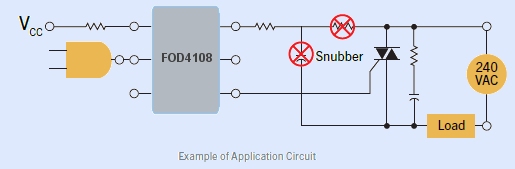

Reduce Component Count: Due to the FOD4xx’s high commutating and static dv/dt immunity (10kV/us minimum), its performance is such that additional noise filtering is not required. This allows the snubber across the TRIAC driver to be eliminated from the circuit. Since the snubber capacitor is across the mains, it must be safety certified. These special safety certified capacitors are very expensive, approximately $0.35 each in high volume! Those capacitors are also about four times the size of the optocoupler which makes removing them a significant space savings!



Reducing Standby Power: By eliminating the snubber network a significant reduction in standby power consumption can be realized. The snubber circuit consumes power even when the load is in the off-state. As an example, a 240V AC Mains application using a 0.1uF snubber capacitor conducts 10mA in the off-state translating to a power loss of 2W. With new directives for reducing standby power as energy costs skyrocket, the power savings offered by these devices can substantially help designers achieve their standby power targets.

Ease of Design: Aside from the cost savings of removing the RC snubber components, there’s another advantage. Selecting the values of the RC network is tedious. Often, designers don’t know the power factor of their load, what noise will come from the mains, the type of load being switched, or even what type of load will be connected to the circuit (e.g., in the case of hockey puck solid state relays). As a result, they are forced to estimate the values and then hand tune the circuit on the bench. For the case of the SSR, that’s impossible because they can’t simulate an undefined load. The FOD4xx eliminates this hassle by removing those components from the circuit.

FOD41XX family features:
●  Low Input Drive Current:

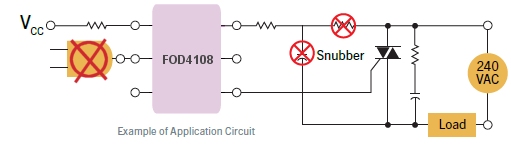

The FOD4108 device has a maximum IFT rating of 2mA. This compares to 5mA or higher maximum ratings for monolithic triacs. The low IFT rating of the FOD4xx devices allows designers to significantly reduce the current supplied to the optocoupler’s LED resulting in a significant power savings. It also allows for the removal of the buffer from the input circuit since the 2mA drive current is within the drive capability of CMOS gates.


  Integrated Zero-Cross:
The FOD41XX family features an integrated zero-cross inhibit circuit which prevents the device from switching near the peak of the AC mains.

Since these parts are roughly 3x to 4x more expensive than the MOC30xxM and FODM30xx optocouplers, desingers need to understand why these devices should be considered.
●  Superior commutating and static dv/dt performance eliminates expensive snubber capacitor.
●  Low input drive current saves on power consumption.
●  Elimination of R-C snubber reduces standby power consumption.
●  Rated for a blocking voltage of 800V minimum while the equivalent monolithic zero-cross devices are limited to a 600V rating.

Note: This optoisolator should not be used to drive a load directly. It is intended to be a discrete triac driver device only.

For Your Knowledge:
The Snubberless TRIAC also called: Three-quadrant / 3Quad / 3Q / Snubberless / High commutating / Hi-Com / High dv/dt TRIAC

Documents & Files:
FOD4118-191117.pdf
Datasheet
Snubberless-TRIAC-Drive-Optocouplers.pdf
Snubberless TRIAC Drive Optocouplers
FOD41xx_And_FOD42xx_Snubberless_Triacs.pdf
New Snubberless TRIAC Drive Optocouplers
Optocoupler-Solutions.pdf
FAIRCHILD Optocoupler Solutions Guide
Manufacturer website: [Click here]
