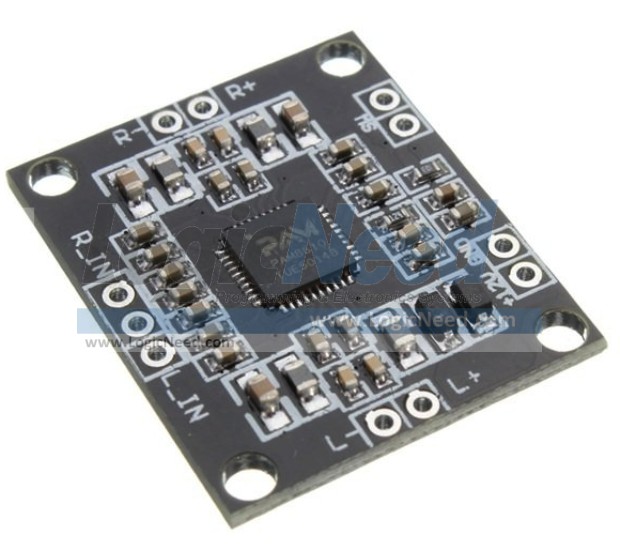

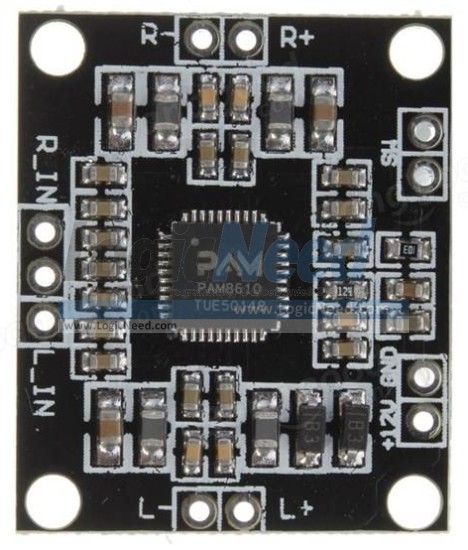

PAM8610  2x10W Class-D Audio Amplifier Board
Item # 16083
2 x 10W Class-D Audio Amplifier Module
Based on PAM8610

2-Channels Audio module
Description: Digital two-channel stereo power amplifier

10w stereo class-d audio power amplifier.

The PAM8610 runs off of a 7V to 15V supply at much higher efficiency than competitors’ ICs.

The amplifier with ultra-high efficiency, large power, in the case of 12V power supply can output 10W + 10W of power, the chip without heat sink, also has overheated, over-current protection function, the function can be said to be very powerful.

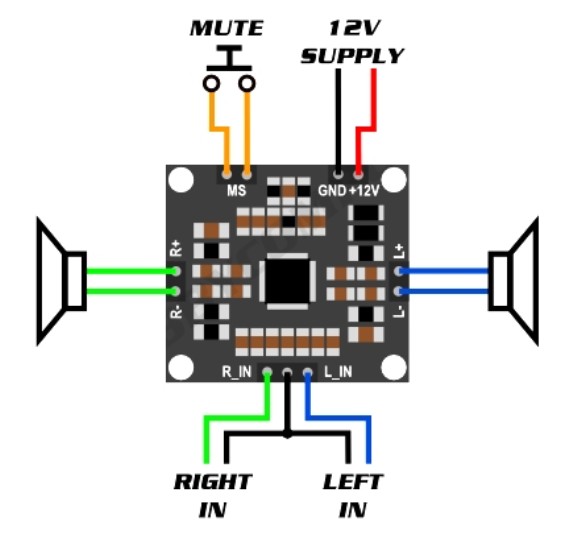

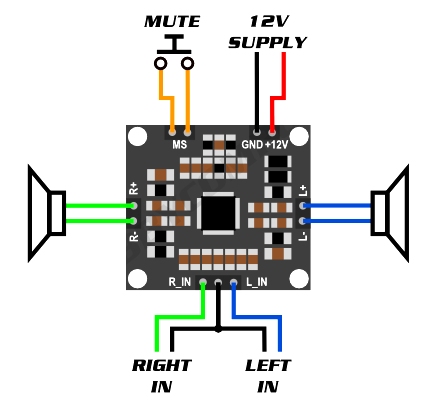

The board has a switching function, the SW shorted turns off the power amplifier.

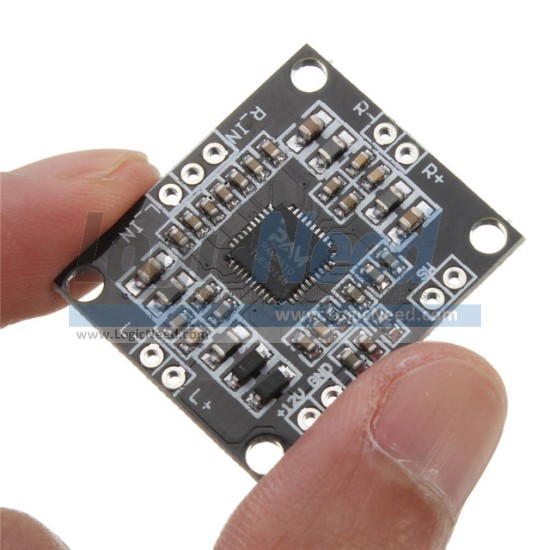

Board size: 2.9 cm x 2.5cm

Application
  • Flat Monitor /LCD TVS
  • Multi-Media Speaker System
  • DVD Players, Game Machines
  • Boom Box
  • Music Instruments




YouTube Videos:
Documents & Files:
PAM8610.pdf
PAM8610 Chip Datasheet
Manufacturer website: [Click here]
