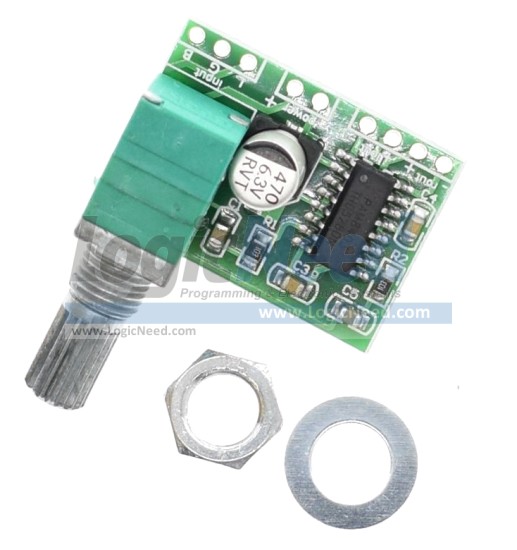

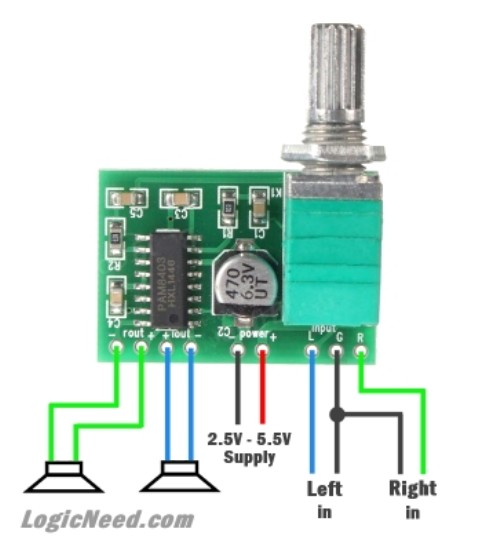

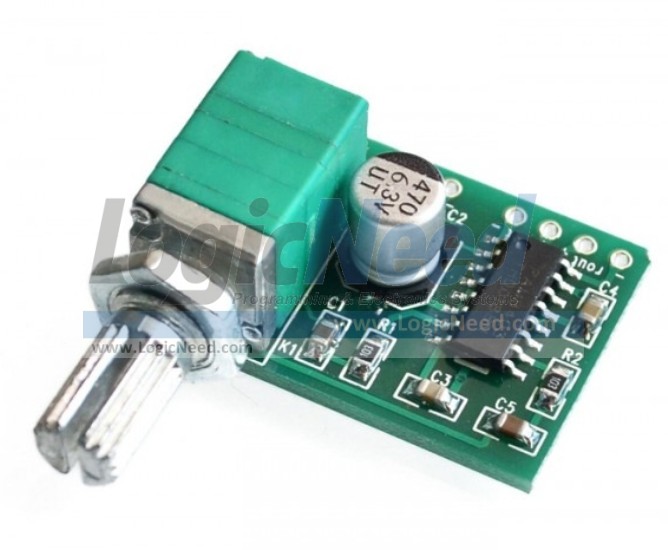

PAM8403  2x3W Class-D Audio Amplifier Mini Board with Switch Potentiometer
Item # 16084
5V Power Amplifier Board Support USB Power Supply 3W+3W (Switch potentiometer)

2-Channels Audio module
PAM8403 mini 5V power amplifier board Support USB Power supply
This power Amplifier board adopts original PAM Digital power amplifier chip IC,simple design but steadily function,suitable for battery or portable electronics products,suitable for long time steady usage.

Technical Specifications:
● Operating voltage: 2.5V - 5.5V
● Maximum output power: 3W*2(5V 4Ω)

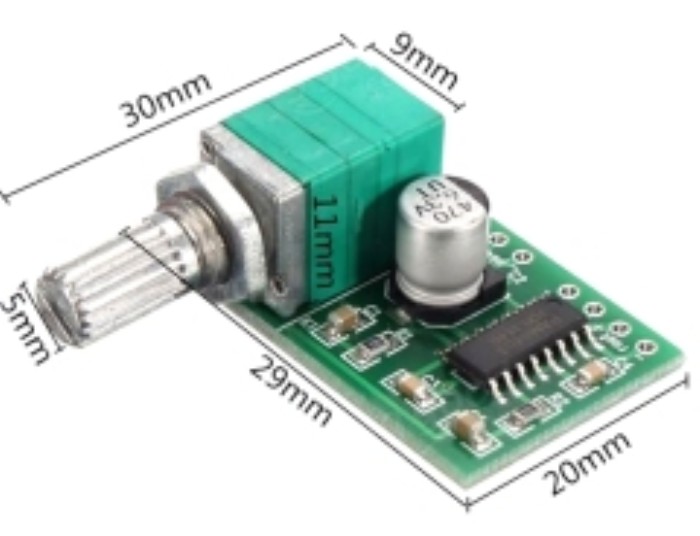

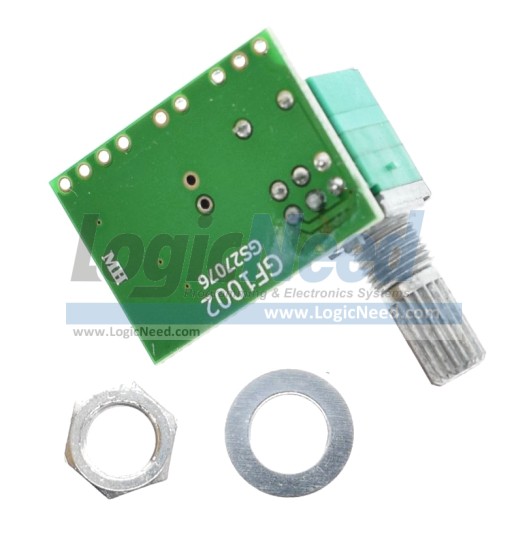

● Board Size: apporx.30*20*16mm
● Built with switch Potentiometer,can adjust the volume and control power switch freely!
The PAM8403 is a 3W, class-D audio amplifier. It offers low THD+N, allowing it to achieve high-quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications. The PAM8403 is available in SOP-16 package.

Dual channel stereo, high output power (3 w + 3 w power @ 5V and 4 ohms load)
Good sound quality
Can use computer USB for power supply directly. Double panel wiring solves crosstalk
Super mini design allows it to be easily placed in a variety of digital products.
3W Output at 10% THD with a 4ΩLoad and 5V Power Supply
Filterless, Low Quiescent Current and Low EMI
Superior Low Noise
Efficiency up to 90%
Short Circuit Protection
Thermal Shutdown

● Bluetooth Stereo Audio hands free / headsets
● In robots that speak or generate sounds to indicate activities
● Portable Speakers
● LCD Monitors / TV Projectors
● Arduino or Raspberry Pi Game Machines
● Speaker Phones

Please make sure the power supply is not more than 5.5V and please don't do reverse polarity for "+" and "-", or else, it will burn the board.

Documents & Files:
PAM8403 Datasheet
PAM8403 User Guide.pdf
User Guides and EV Boards
Manufacturer website: [Click here]

40.00  EGP
per Unit
