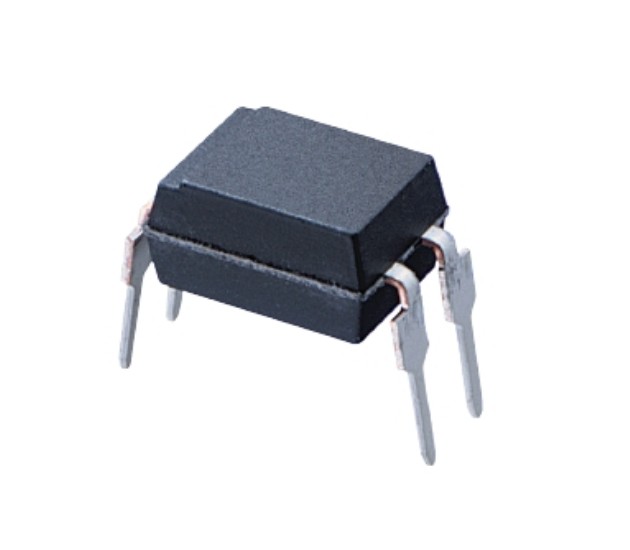

PC817 General Purpose Photocoupler
Item # 1615
PC817C
PC817X Series

Package type: DIP 4-pin
Description:
High Density Mounting Type Photocoupler

Features:
1. Current transfer ratio ( CTR: MIN. 50% at IF = 5mA ,VCE=5V)
2. High isolation voltage between input and output (Viso: 5000V rms )
3. Compact dual-in-line package PC817 : 1-channel type
4. Recognized by UL, file No. E64380

CTR (%): 200 to 400

Applications:
1. Computer terminals
2. System appliances, measuring instruments
3. Registers, copiers, automatic vending machines
4. Electric home appliances, such as fan heaters, etc.
4. Signal transmission between circuits of different potentials and impedances

Internal connection diagram



Quantity:
Price:
1.50  EGP
per Unit
