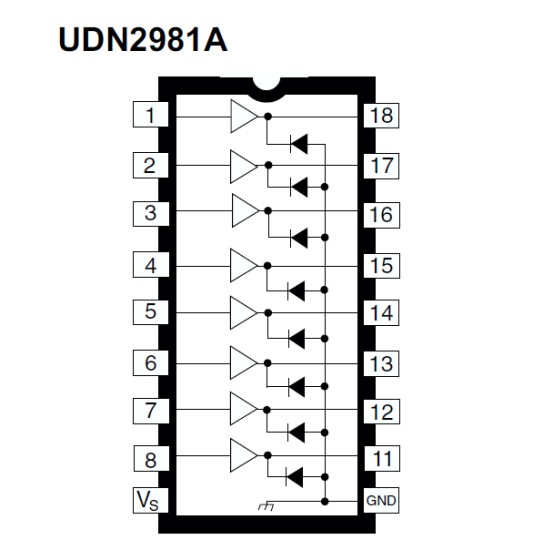

Description: Recommended for high-side switching applications that benefit from separate logic and load grounds, these devices encompass load supply voltages to 80 V and output currents to -500 mA. These 8-channel source drivers are useful for interfacing between low-level logic and high-current loads. Typical loads include relays, solenoids, lamps, stepper and/or servo motors, print hammers, and LEDs.
● Output Voltage Range, VCE: 5 V to 50 V
● Output Current, IOUT: -500 mA
● Operating Temperature Range, TA: -20°C to +85°C
● Storage Temperature Range, TS: -55°C to +150°C
FEATURES
◾ TTL, DTL, PMOS, or CMOS Compatible Inputs
◾ 500 mA Output Source Current Capability
◾ Transient-Protected Outputs
◾ Output Breakdown Voltage to 50 V
