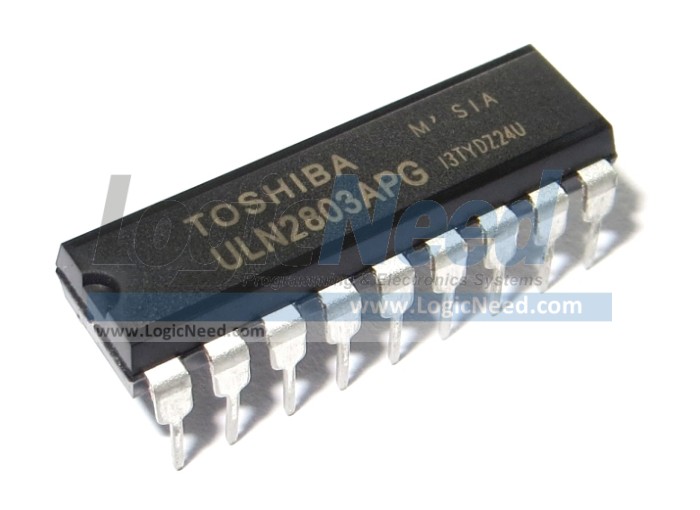

Description: The ULN2803APG / AFWG Series are high−voltage, high−current darlington drivers comprised of eight NPN darlington pairs.
All units feature integral clamp diodes for switching inductive loads.
Applications include relay, hammer, lamp and display (LED) drivers.
Features:
● Output current (single output) 500 mA (max)
● High sustaining voltage output 50 V (min)
● Output clamp diodes
● Inputs compatible with various types of logic.

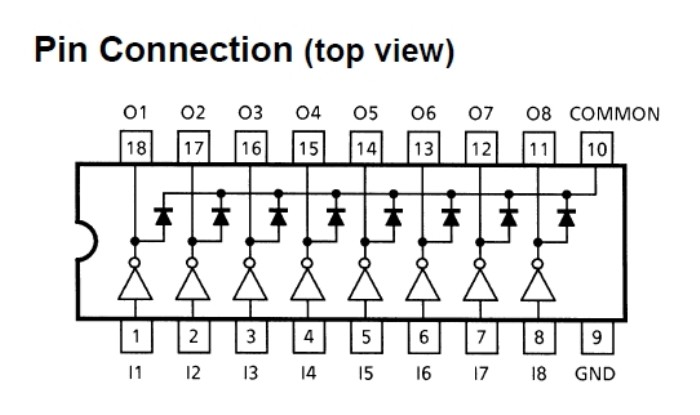

● Package Type−APG : DIP−18pin
