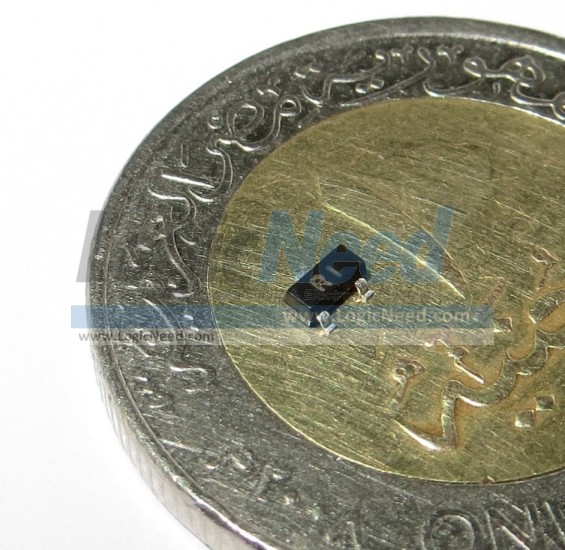

CJ3401  P-Channel MOSFET transistor
Item # 331
SMD  CJ3401-HF
Extremely low on-resistance
Equivalent to: AO3401 MOSFET transistor

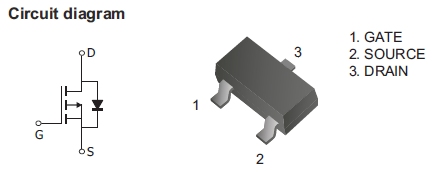

Package type: SOT-23
Description: Extremely low on-resistance and maximum DC current capability.
High dense cell design for extremely low RDS(ON)

Maximum drain-source voltage  VDS : -30 V
Maximum gate-source voltage  VGS : ±12 V
Maximum continuous drain current  I:  -4.2 A
Maximum power dissipation P: 350 mW

Drain-source on-resistance:
 @ (VGS =-10V , ID=-4.2A):  48 mΩ
 @ (VGS=-4.5V , ID=-4A) : 62 mΩ
 @ (VGS=-2.5V , ID=-1A):  88 mΩ


Marking Code: R1
Documents & Files:
Manufacturer website: [Click here]
Similar products:



Quantity:
Price:
$0.11  USD
per Unit
