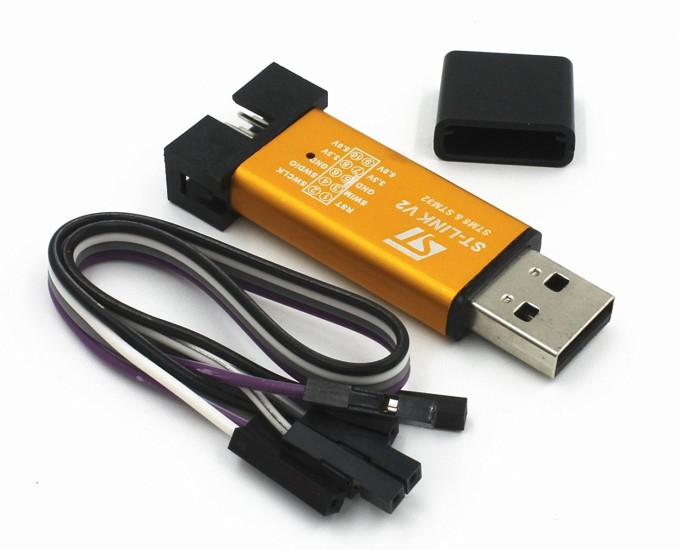

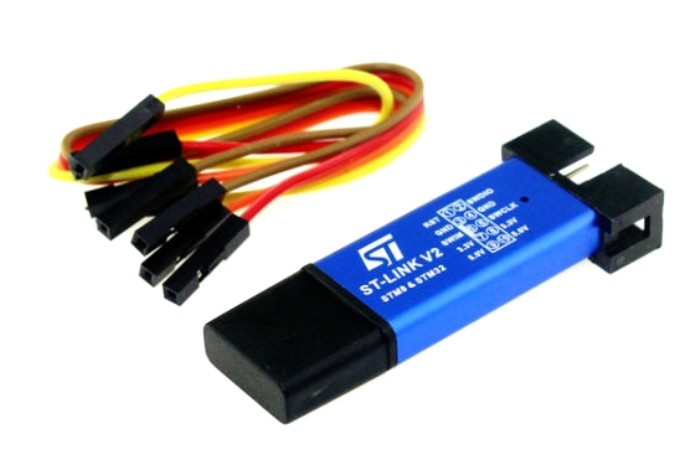

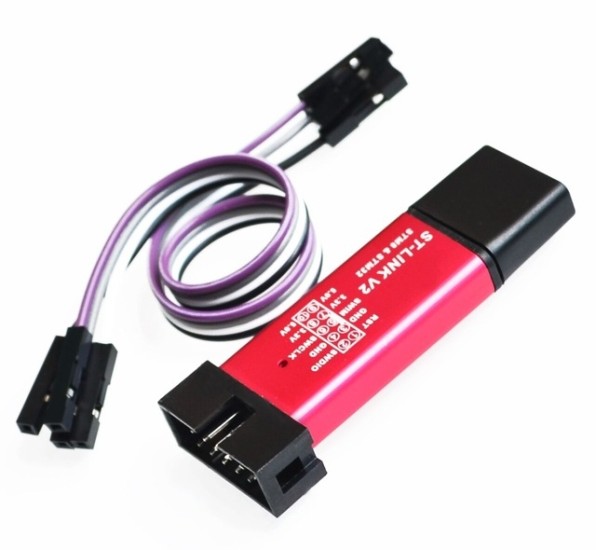

ST-Link V2 Mini STM8 and STM32 Programmer/Debugger With Metallic Case
Item # 50402
ST-Link V2 Mini STM8 STM32 Programmer Debugger 3.3V/5V With Metallic Case (in Random Color Blue, Green, Black, Red, Yellow or Orange)
Description: ST-Link/V2 mini is a small form factor clone programmer and in circuit debugger for STM8 and STM32. This mini STM programmer is a low cost alternative, supports all STM32 SWD interface debugging and SWIM debugging for STM8 or STM32 series controllers. It can provide power to target 5V and 3.3V output.

Features:
 ●  PCB installed inside of aluminum alloy shell, portable, safe and reliable
 ●  Interface definition printed on the shell, clear, convenient and practical
 ●  5V, 3.3V offers in the same time, allowing you to program your target board with both 5V and 3.3V
 ●  500mA internal resettable fuse, adds protection to computer USB port
 ●  Red and blue color LED indicator, allowing you to always observe ST-LINK V2 status

Technical Specifications:
  ● Supported Device Series:
      - STM8 Series Microcontrollers
      - STM32 Series Microcontrollers
  ● Supported Interfaces:
      - JTAG/serial wire debugging (SWD)
      - Single wire interface module (SWIM)
  ● Supported Development Environments:
      - ST-LINK Utility 2.0 and above
      - STVD 4.2.1 and above
      - STVP 3.2.3 and above
      - IAR EWARM V6.20 and above
      - IAR EWSTM8 V1.30 and above
      - KEIL RVMDK V4.21 and above

  ● Case Color: Random Color will be shipped

Pin Connections:


Recommended resources for this product:
●   ST-LINK USB driver signed for Windows 7, 8, 10
●   Coding 32-bit STM32 chips with Arduino IDE

Package Includes:
1 ST-Link V2 Mini Programmer Debugger With Metallic Case (Made in China)
1 Female to Female Dupont 4-pin cable.

Documents & Files:
en.stsw-link009.zip
USB driver for Windows (32/64-bit ) 7, 8 and 10
