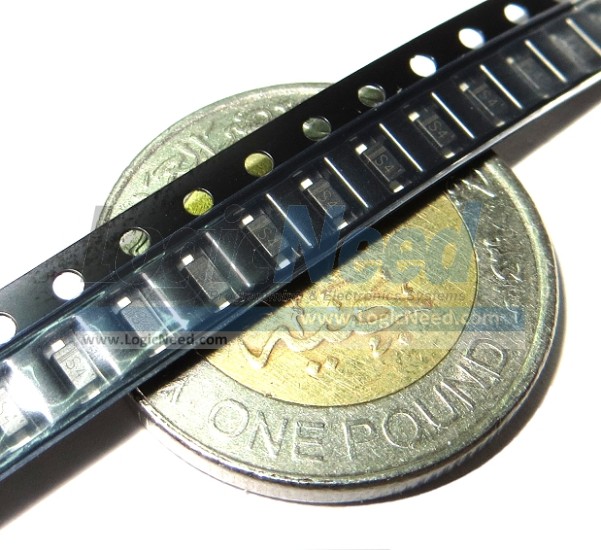

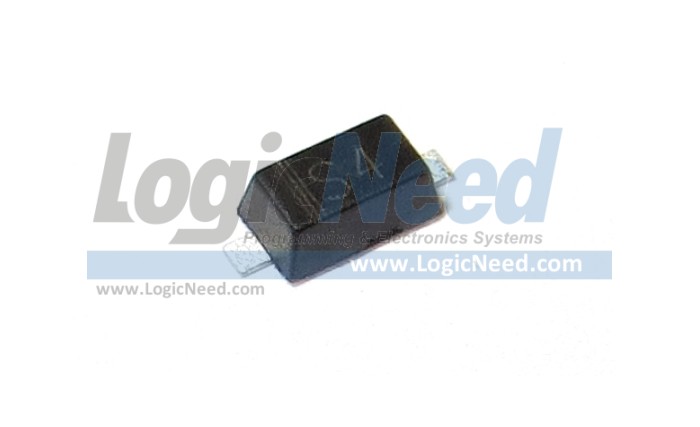

1N5819W Low Voltage Drop Schottky Barrier Diode 40V 1A
xxx
Item # 70477
1N5819
Surface Mount
Package type: SOD-123
Description:
* Low Power Loss,
* Low Forward Voltage Drop
* High Efficiency
* High Surge Capability
* High Current Capability
* Pb / RoHS Free

Features
• Maximum Peak Repetitive Reverse Voltage VRRM : 40V
• Maximum RMS Reverse Voltage VR(RMS): 28V
• Maximum Average Forward Current IF : 1.0A
• Average Forward Current IF(AV): 1.0A
• Maximum Junction Temperature: 125°C
• Storage Temperature: -55°C to +125°C
• Maximum Thermal Resistance (Junction to Ambient): 222°C/W
• Forward Voltage VF:
      0.32V @ IFM = 0.1A
      0.45V @ IFM = 1.0A
Marking Code: S4
Documents & Files:
1N5819W.pdf
Datasheet

RoHS Compliant

Currently
Out of stock
Price:
1.50  EGP
per Unit
