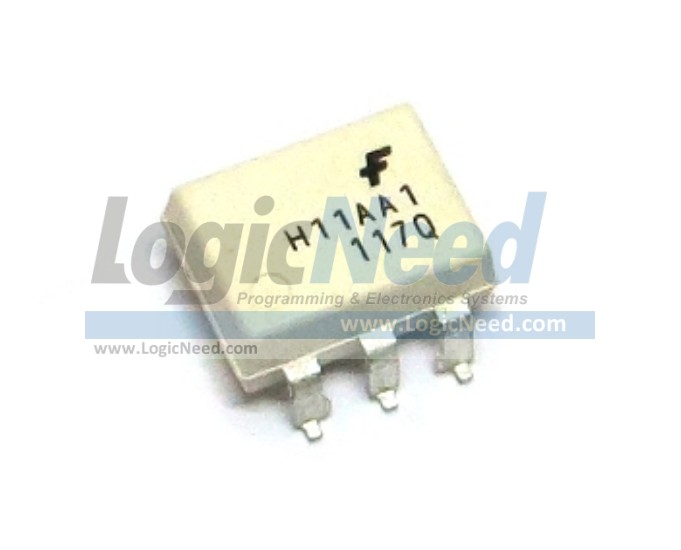

H11AA1 AC Input / Phototransistor Optocoupler (SMD)
xxx
Item # 1618
H11AA1
H11AA1M
H11AA1SR2M

Package type: SMD-DIP-6
Description:
The H11AAX series consists of two gallium-arsenide infrared emitting diodes connected in inverse parallel driving a single silicon phototransistor output.

Designed for applications requiring detection or monitoring of AC signals

Specifications:
   EMITTER:
       ● Continuous Forward Current IF100 mA
       ● Input Forward Voltage VF:  1.2 V
       ● LED Power Dissipation PD200 mW

   DETECTOR (OUTPUT TRANSISTOR):
       ● Collector-Emitter Voltage BVCEO30 V
       ● Collector-Base Voltage BVCBO70 V
       ● Emitter-Collector Voltage BVECO7 V
       ● Emitter-Base Voltage BVEBO5 V
       ● Detector Power Dissipation PD:  300 mW

Features:
■ Bi-polar emitter input
■ Built-in reverse polarity input protection
■ Underwriters Laboratory (UL) recognized – File #E90700
■ VDE approved – File #E94766 (ordering option ‘300’)

Applications:
■ AC line monitor
■ Unknown polarity DC sensor
■ Telephone line interface

Operating Temperature:  -55 to +100 °C
Documents & Files:
H11AA1.pdf
Datasheet
646BY.PDF
Package Dimensions
AN-3005-D.PDF
Design Fundamentals for Phototransistor Circuits
Manufacturer website: [Click here]


Quantity:
Price:
$0.82  USD
per Unit
