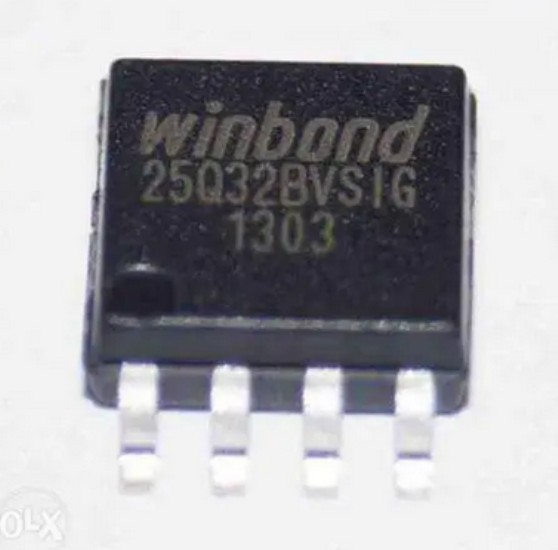

Item # 14105
W25Q32BV
W25Q32BVSSIG
25Q32BVSIG
SMD
Max. speed: 104MHz Dual SPI / 80MHz Quad SPI
Power Consumption: as low as 4mA active and 1μA for power-down.
Package type: SOIC-8 208-mil
|
Description: The W25Q32BV (32M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices.
They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data.
The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 4mA active and 1μA for power-down.
The W25Q32BV supports the standard Serial Peripheral Interface (SPI), and a high performance Dual/Quad.
Additionally, the device supports JEDEC standard manufacturer and device identification with a 64-bit Unique Serial Number.
FEATURES
● Family of SpiFlash Memories
– W25Q32BV: 32M-bit / 4M-byte (4,194,304)
– 256-byte per programmable page
– Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
– Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
– Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
● Highest Performance Serial Flash
– 104MHz Dual SPI / 80MHz Quad SPI clocks
– 208/320MHz equivalent Dual/Quad SPI
– 40MB/S continuous data transfer rate
– Min. 100K Program-Erase cycles per sector
– More than 20-year data retention
● Efficient “Continuous Read”
– Low Instruction overhead
– Continuous Read with 8/16/32/64-Byte Wrap
– As few as 8 clocks to address memory
– Allows true XIP (execute in place) operation
– Outperforms X16 Parallel Flash
● Low Power, Wide Temperature Range
– Single 2.7V to 3.6V supply
– 4mA active current, <1μA Power-down (typ.)
– -40°C to +85°C operating range
● Flexible Architecture with 4KB sectors
– Uniform Sector/Block Erase (4K/32K/64K-Byte)
– Program 1 to 256 bytes
– Erase/Program Suspend & Resume
● Advanced Security Features
– Software and Hardware Write-Protect
– Top/Bottom, 4KB complement array protection
– Power Supply Lock-Down and OTP protection
– 64-Bit Unique ID for each device
– Discoverable Parameters (SFDP) Register
– 3X256-Byte Security Registers with OTP locks
– Volatile & Non-volatile Status Register Bits
● Space Efficient Packaging
– 8-pin SOIC 208-mil

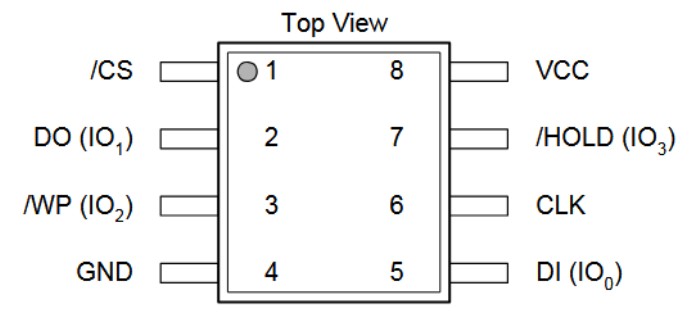

Pin Configuration SOIC 208-mil:
|
|
Currently
Out of stock
|
|
Price:
|
|
55.00 EGP per Unit
|
|
