Item # 14115
W25Q32JV

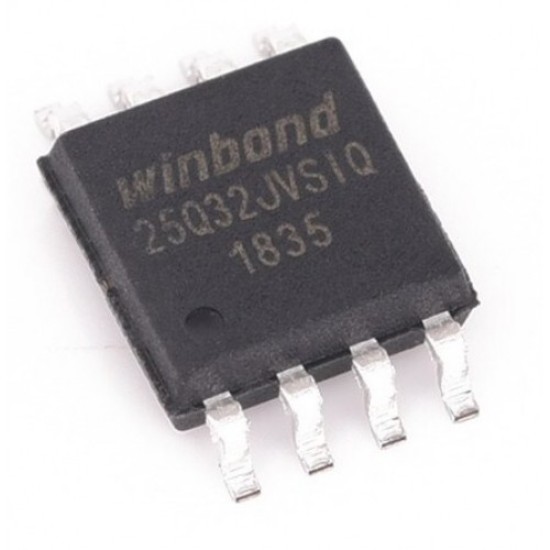

W25Q32JVSSIQ
25Q32JVSIQ
SMD
Max. speed: 133MHz
Power Consumption: as low as 1μA for power-down.
Package type: SOIC-8 208-mil
|
Description: The W25Q32JV (32M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices.
They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data.
The device operates on 2.7V to 3.6V power supply with current consumption as low as 1μA for power-down.
The W25Q32JV supports the standard Serial Peripheral Interface (SPI), and a high performance Dual/Quad.
Additionally, the device supports JEDEC standard manufacturer and device ID and SFDP Register, a 64-bit Unique Serial Number and three 256-bytes Security Registers.
FEATURES
● New Family of SpiFlash Memories
– W25Q32JV: 32M-bit / 4M-byte
– Standard SPI: CLK, /CS, DI, DO
– Dual SPI: CLK, /CS, IO0, IO1,
– Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
– Software & Hardware Reset
● Highest Performance Serial Flash
– 133MHz Single, Dual/Quad SPI clocks
– 266/532MHz equivalent Dual/Quad SPI
– 66MB/S continuous data transfer rate
– Min. 100K Program-Erase cycles per sector
– More than 20-year data retention
● Efficient “Continuous Read”
– Continuous Read with 8/16/32/64-Byte Wrap
– As few as 8 clocks to address memory
– Allows true XIP (execute in place) operation
– Outperforms X16 Parallel Flash
● Low Power, Wide Temperature Range
– Single 2.7V to 3.6V supply
– <1μA Power-down (typ.)
– -40°C to +85°C operating range
● Flexible Architecture with 4KB sectors
– Uniform Sector/Block Erase (4K/32K/64K-Byte)
– Program 1 to 256 byte per programmable page
– Erase/Program Suspend & Resume
● Advanced Security Features
– Software and Hardware Write-Protect
– Special OTP protection
– Top/Bottom, Complement array protection
– Individual Block/Sector array protection
– 64-Bit Unique ID for each device
– Discoverable Parameters (SFDP) Register
– 3X256-Bytes Security Registers
– Volatile & Non-volatile Status Register Bits
● Space Efficient Packaging
– 8-pin SOIC 208-mil

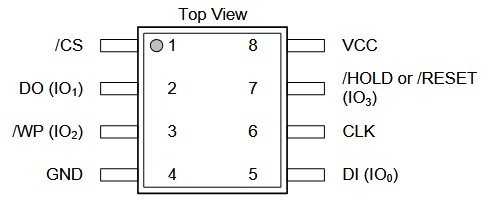

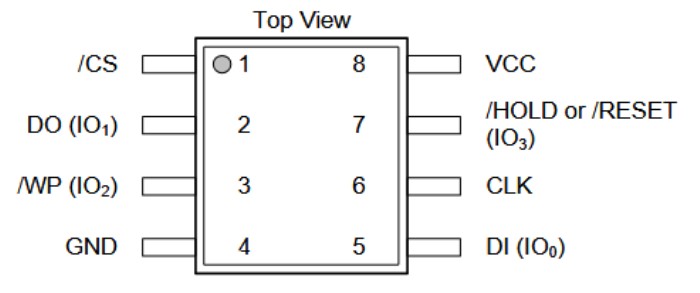

Pin Configuration SOIC 208-mil:
|
|
Currently
Out of stock
|
|
Price:
|
|
68.00 EGP per Unit
|
|
