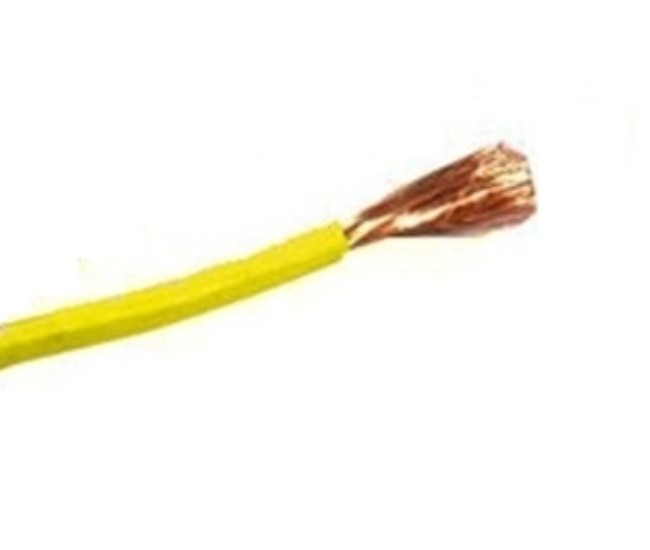

1 mm  Flexible Copper Insulated Wire - 1 Meter
Item # 17710
Flexible Copper Insulated Wire

1 meter lenght  (we cut your required lenght from 100-Meter roll)

99.9% Copper Purity

  Original  EL-SEWEDY CABLES
  H05V-K Copper Conductor

Description: Flexible Pure Copper Wire

Construction:
●  Conductor: Flexible Copper conductor (class 5 )
the core is formed by a large number of thin wires
No. of wires: ≈ 32
max. wire-Ø:  0.21 mm
●  Copper Purity: 99.9%
●  Insulation: PVC (Polyvinyl Chloride)
●  Insulation Thickness: 0.6 mm

Characteristics:
● Voltage Rating (Uo/U): 300/500V
● Temperature Rating:
        Fixed: -30°C to +70°C
        Flexed: -5°C to +70°C

Specifications:
● Model: H05V-K
● Nominal Cross Section: 1 mm2
● Approx. Overall Diameter: 2.46 mm
● Max. DC Resistance at 20°C: 19.5 ohm / km
● Current Rating (enclosed in conduit): 10 A
● Wire Color: Yellow
● Wire Lenght: 1 meter (we cut your required lenght from 100-Meter roll)

Class 5 (flexible conductor): the core is formed by a large number of thin wires

Applications:
For internal wiring of equipment and protected installation in and on luminaires
Also for installation in conduit on and under plaster, but only for signaling systems

Using Locations:
In dry locations

Standards:
Cable is produced according to: IEC 60227-3 / BS 6004 / HD 21.3 / S.N.S 638-3

Manufacturer:
EL SEWEDY CABLES - Made in Egypt
Documents & Files:
Datasheet.pdf
Datasheet
