Description: Mainstream Value line 8-bit MCU with 8 Kbytes Flash, 16 MHz CPU, integrated EEPROM
The STM8S003x value line 8-bit microcontrollers feature 8 Kbytes Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual(RM0016) refers to devices in this family as low-density. They provide the following benefits: performance, robustness, and reduced system cost.
Device performance and robustness are ensured by integrated true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.
The system cost is reduced thanks to high system integration level with internal clock oscillators, watchdog and brown-out reset.
Features:

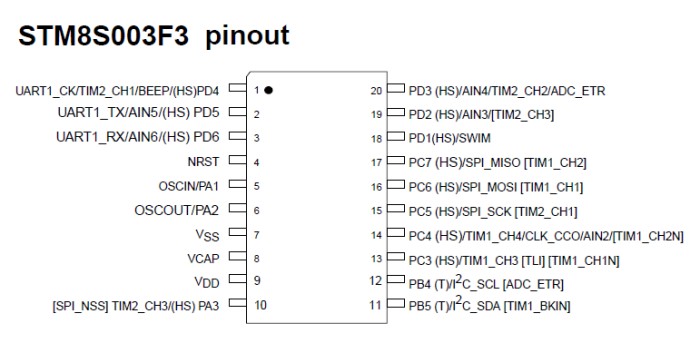

● Pin count: 20
● Maximum number of GPIOs (I/Os): 16
● Ext. interrupt pins: 16
● Timer CAPCOM channels: 7
● Timer complementary outputs: 2
● A/D converter channels: 5
● High sink I/Os: 12
● Low density Flash program memory (bytes): 8K
● RAM (bytes): 1K
● True data EEPROM (bytes): 128
● Peripheral set: Multipurpose timer (TIM1), SPI, I2C, UART, window WDG,independent WDG, ADC, PWM timer (TIM2), 8-bit timer (TIM4)
Full documentation is offered as well as a wide choice of development tools.
