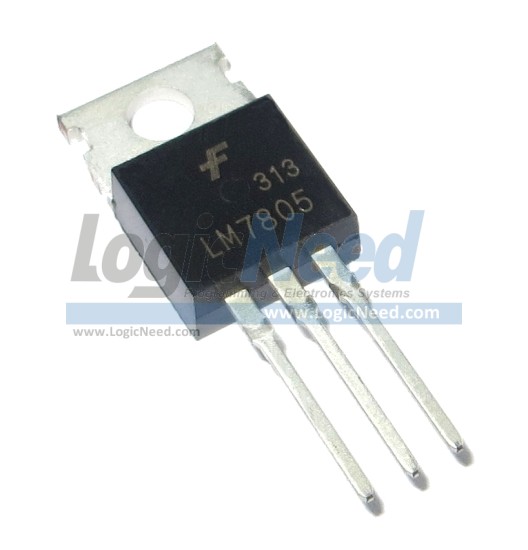

LM7805  5V Voltage Regulator
Item # 203211
7812 / LM7805 / LM7805C
5V 1A Positive voltage regulator IC
Package type: TO-220
Description: The LM78XX series of three-terminal positive regulators is available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut-down, and safe operating area protection.
If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixedvoltage regulators, these devices can be used with external components for adjustable voltages and currents.

Regulator


Features
• Output Current up to 1 A
• Output Voltages: 5 V
• Output Voltage Tolerance: ±2 %
• Thermal Overload Protection
• Short-Circuit Protection
• Operating Temperature Range: 0 to +125 °C
• Output Transistor Safe Operating Area Protection
• Package: TO-220

Documents & Files:
LM7805.pdf
Datasheet
Manufacturer website: [Click here]
Similar products:



Quantity:
Price:
18.00  EGP
per Unit
